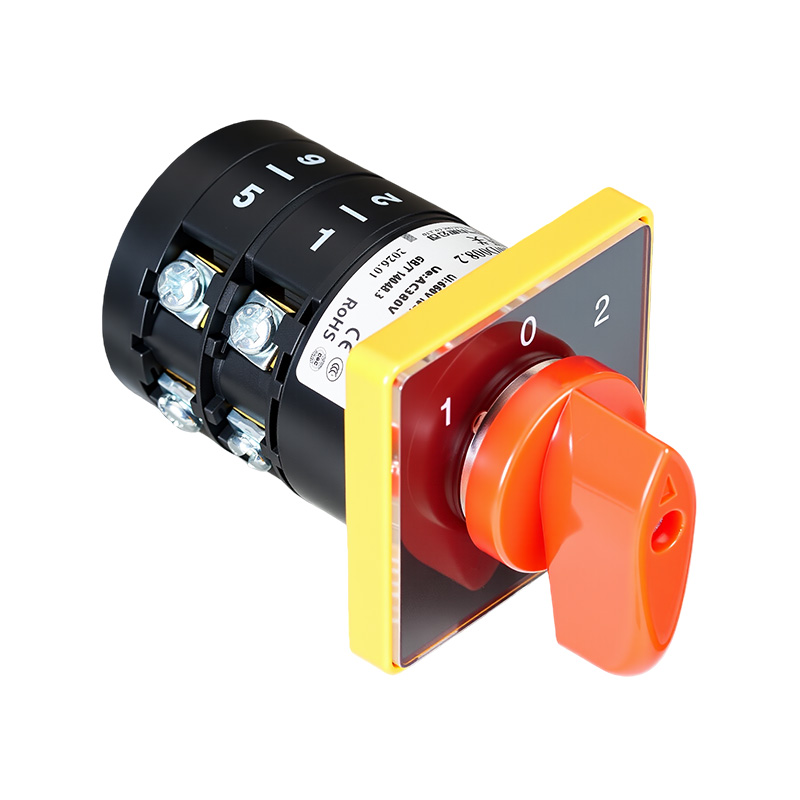

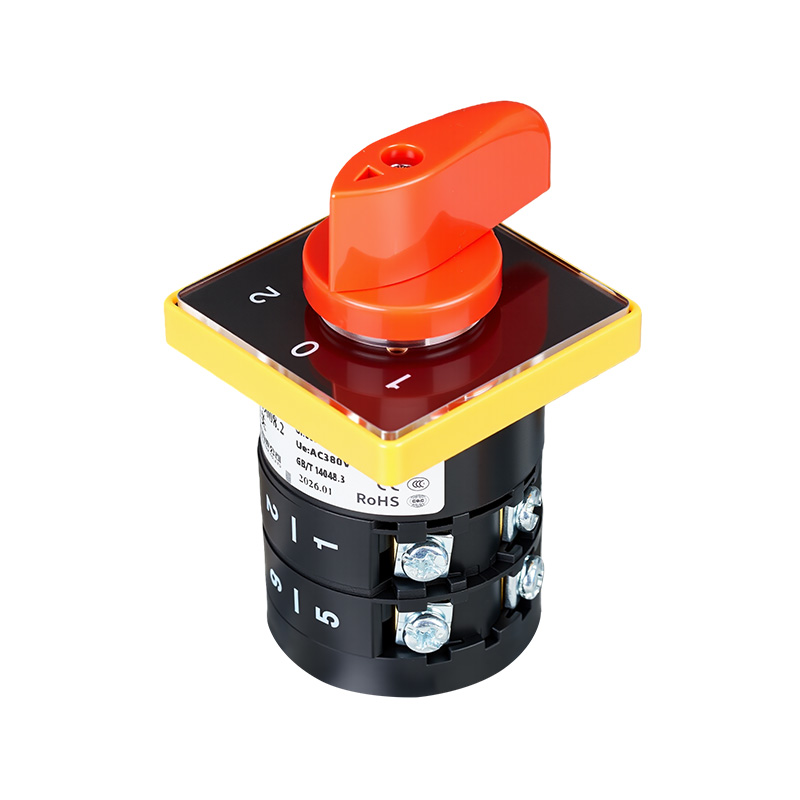

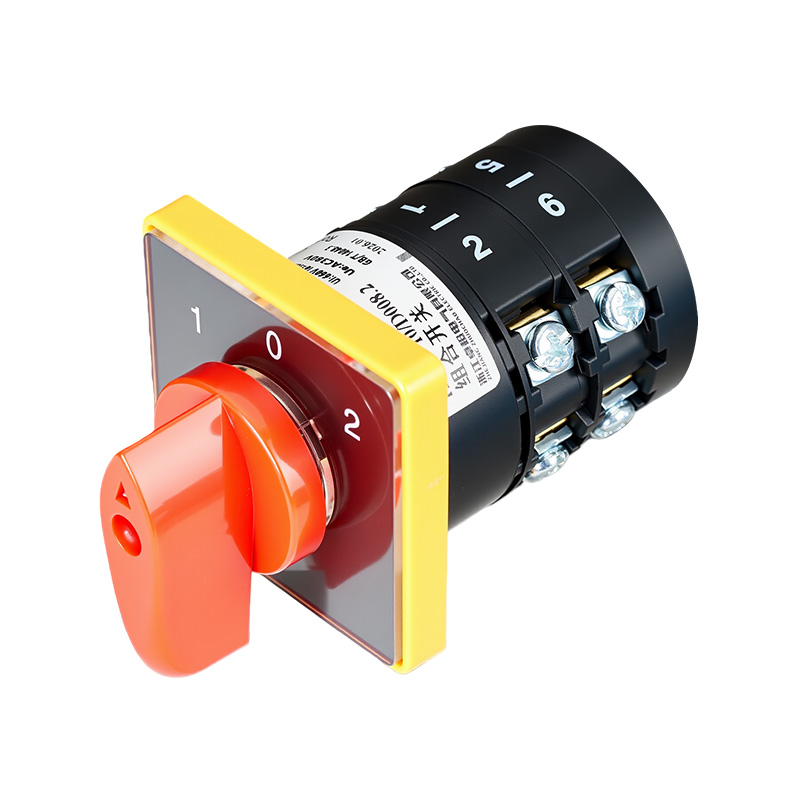

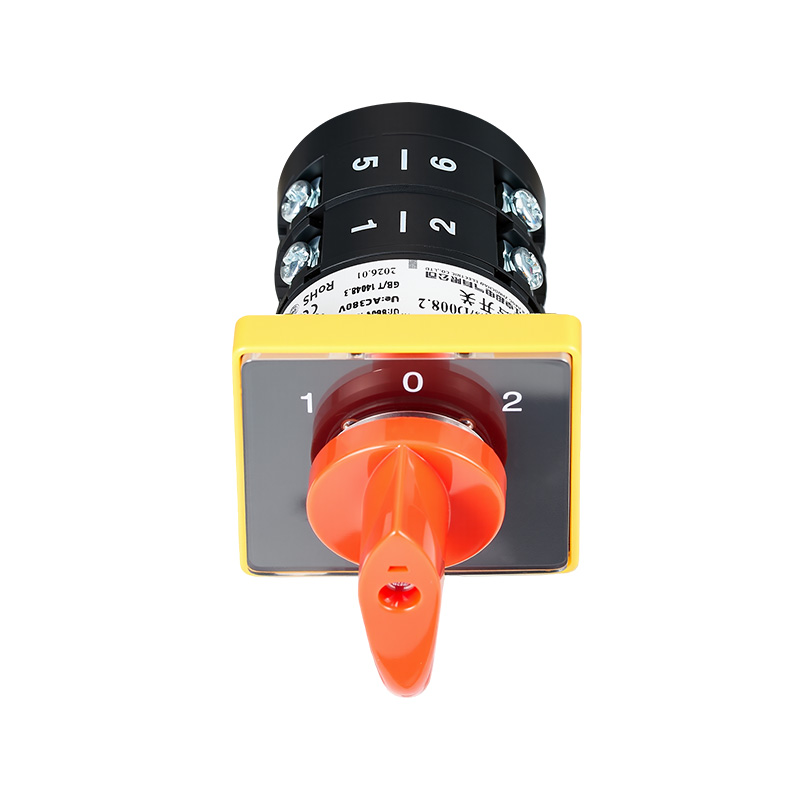

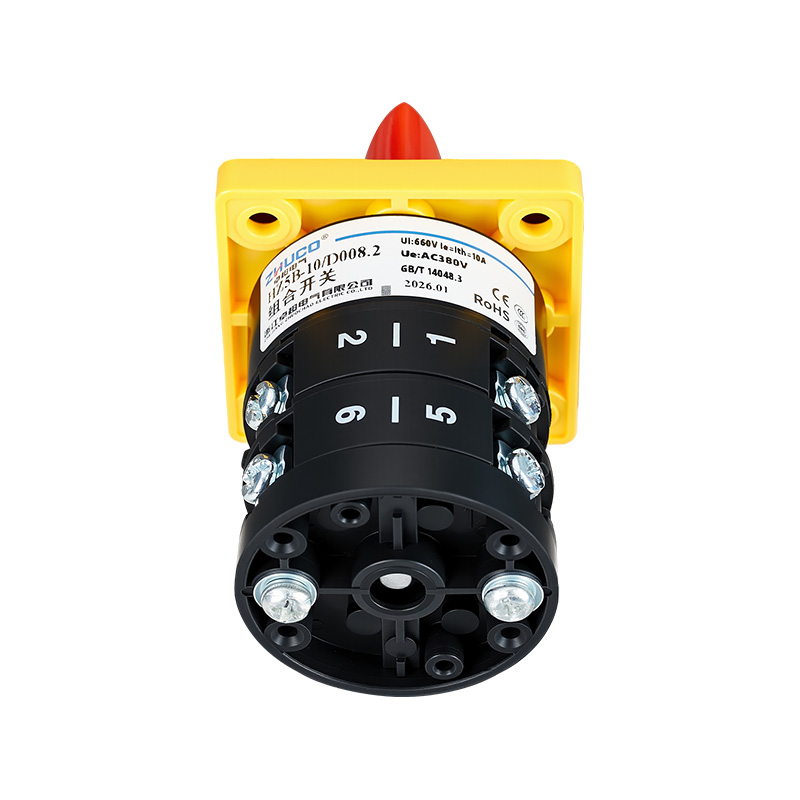

The HZ5B-10/D008.2 is a three-position (1-0-2), two-section (two-layer) manual combination switch with a rated current of 10A. It employs a clearly defined mechanical positioning structure, allowing the handle to stably stop at three positions, each corresponding to a different on/off state of the contacts. This switch is suitable for low-voltage electrical circuits requiring clear and stable control logic, enabling the selection and safe isolation of two circuits.
1. Main Technical Parameters
Rated Operating Current: 10A
Rated Operating Voltage: AC 380V, 50Hz/60Hz
Conventional Free Air Heating Current (Ith): 10A
Contact Configuration and Position Logic
Structure: Two sections (two layers), two sets of contacts per layer
Position "1": Contacts 1-2, 5-6 are closed
Position "0": All contacts are open (intermediate isolation position)
Position "2": Contacts 3-4, 7-8 are closed
Mechanical and Electrical Life: (Operating frequency ≤120 times/hour) Mechanical Life: ≥ 100,000 times
Electrical Life:
• AC-23A (Resistive Load): ≥ 30,000 times
• AC-3 (Squirrel Cage Motor): ≥ 30,000 times
• AC-4 (Inching, Reverse Braking): ≥ 30,000 times
Terminal Screws: M4 Wire Range: 1.0 – 1.5 mm² Tightening Torque: 1.2 N·m
Structure and Materials: The outer shell is made of flame-retardant and high-temperature resistant material, and the interior features silver alloy contacts and thickened copper conductors to ensure reliable contact, good conductivity, and long service life.
2. Application Scenarios: This switch is suitable for applications requiring manual switching of two independent signals or power supplies, and where a clear intermediate disconnect position is required.
