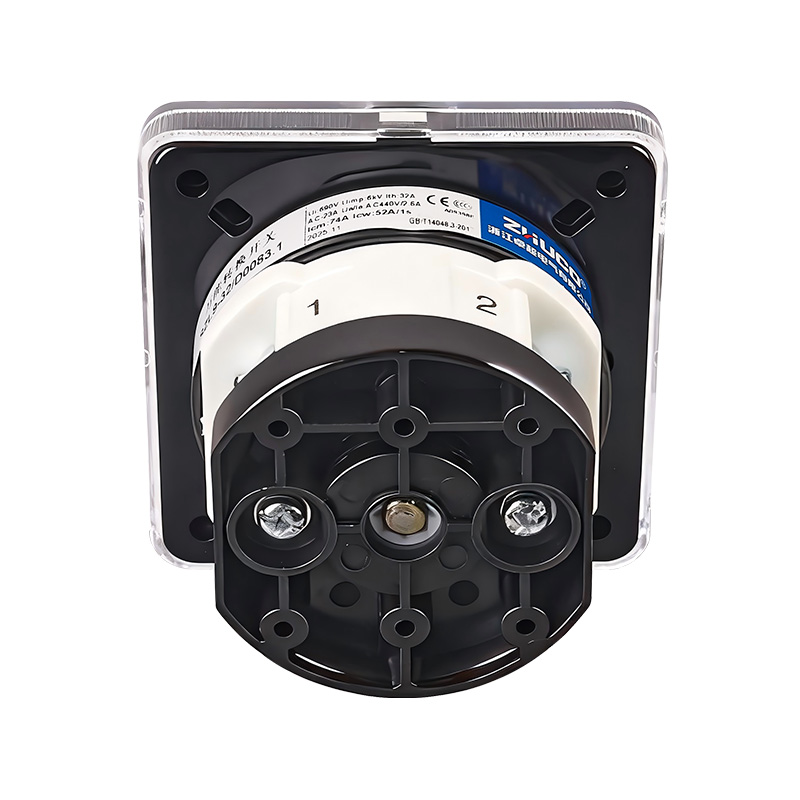

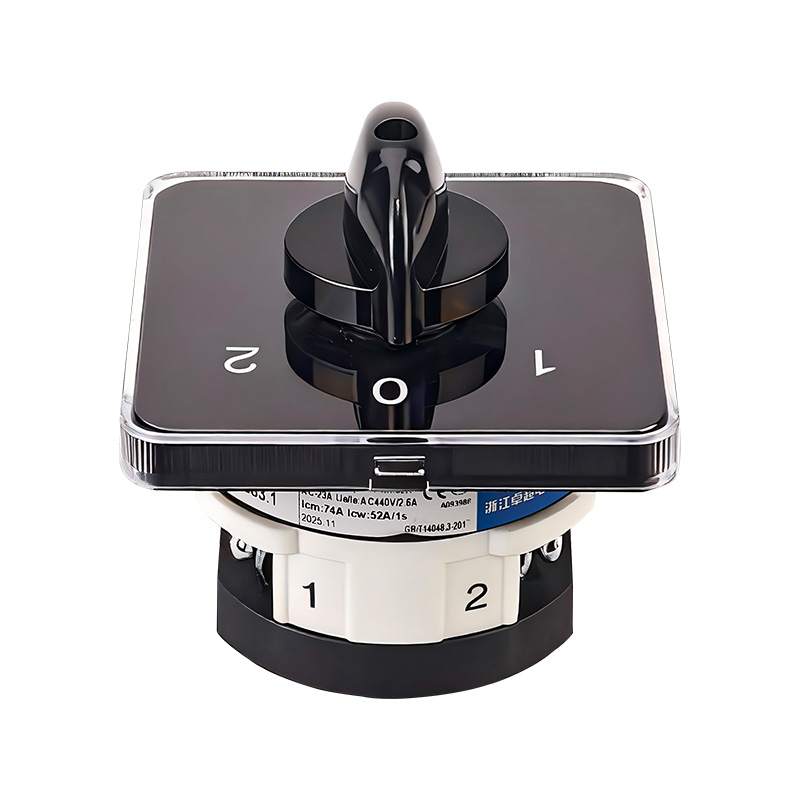

The SZL9-32 D0083.1 is a single-pole, three-position changeover switch with a rated current of 32A, primarily used for single-circuit electrical control. Through three-position switching, it allows for transitions between different operating states. The product features a compact structure and flexible installation, making it suitable for use in control panels or electrical enclosures. It is commonly used in applications such as equipment start/stop control and circuit selection, providing a stable operating method for electrical systems.

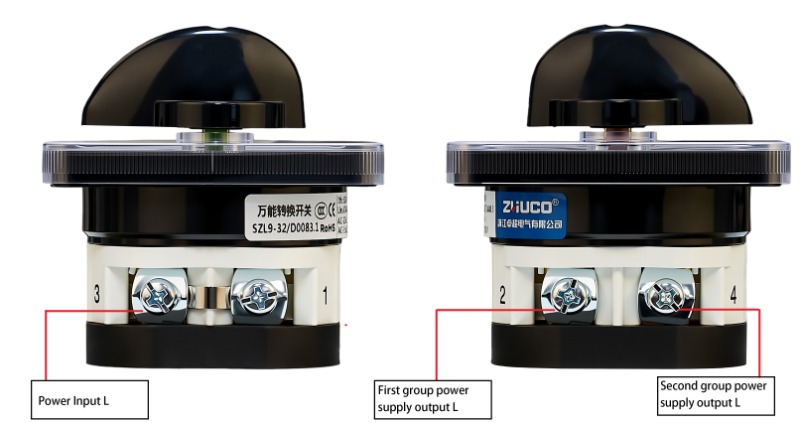

It is suitable for AC 50Hz~60Hz electrical circuits with a rated operating voltage of ≤440V and a rated insulation voltage of 690V. It is used in complete sets of electrical switchgear or for starting, speed control, and reversing of three-phase asynchronous motor loads, and also for switching between main and auxiliary circuits. It can also be used for switching between main and auxiliary circuits in industrial automation equipment. It can completely replace other changeover switches.
It features flame-retardant and high-temperature resistant materials, good insulation, safety, and durability, alloy contacts, brass terminals, stable conductivity, long lifespan, flexible installation methods, and customizable panel text, meeting the needs of daily equipment operation. It can be applied in distribution boxes and control cabinets for main and auxiliary circuit switching, among other applications.
Mechanical life: 0.3 x 10⁶ cycles, operating frequency: 120 cycles/hour.
Electrical life: 0.6 x 10⁶ cycles, operating frequency: 120 cycles/hour.
