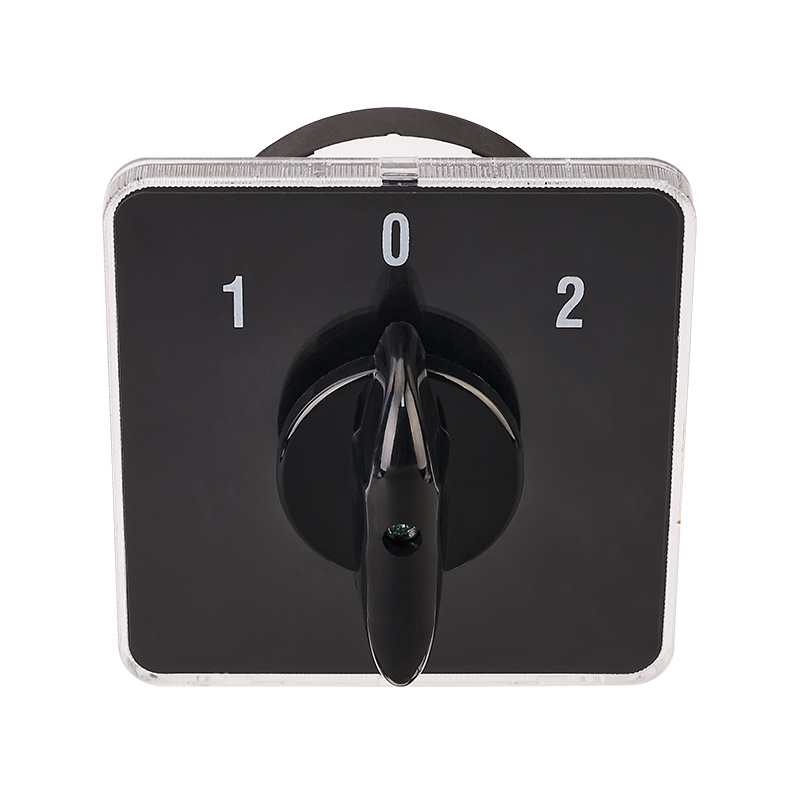

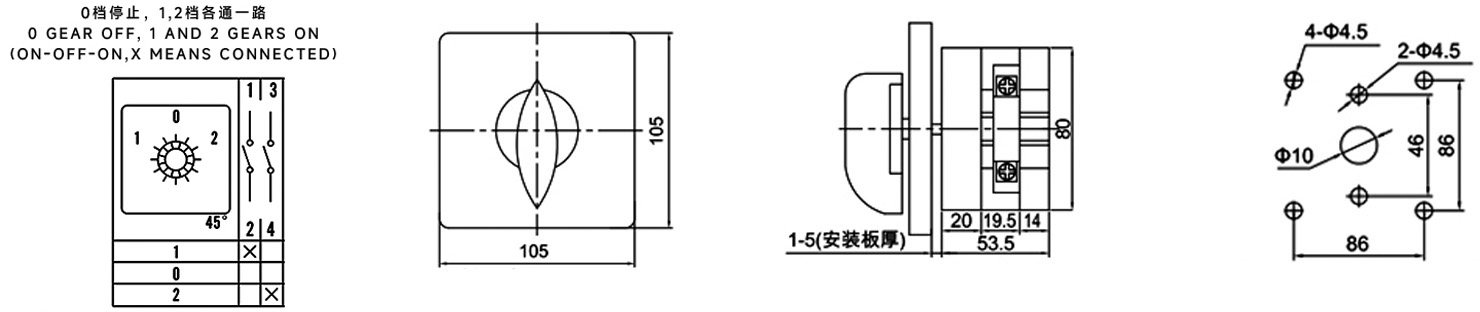

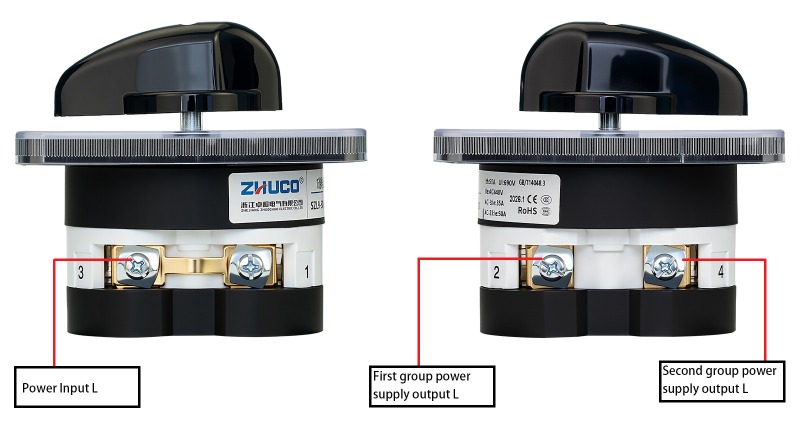

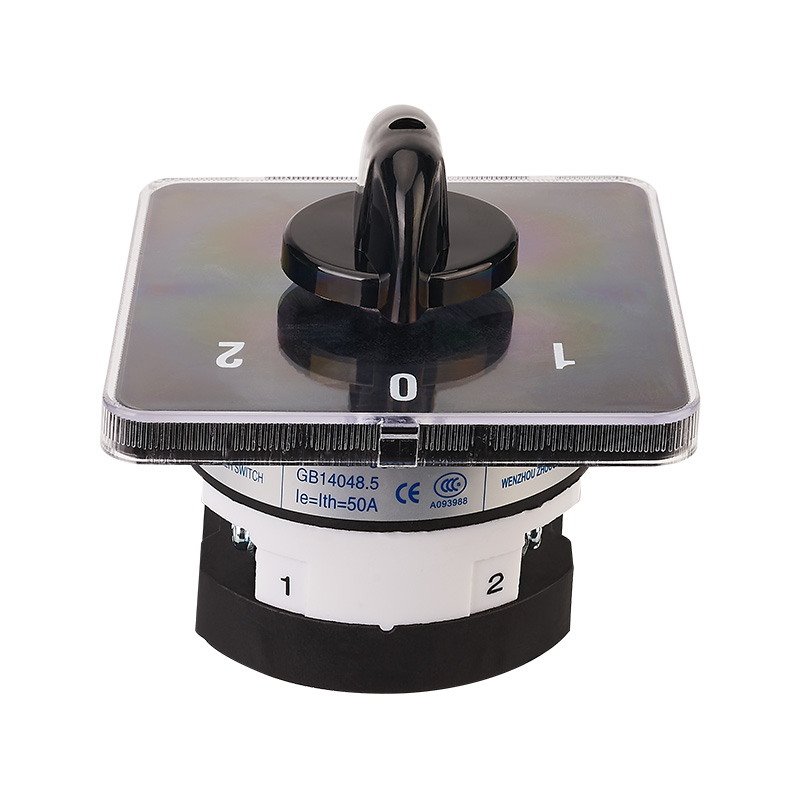

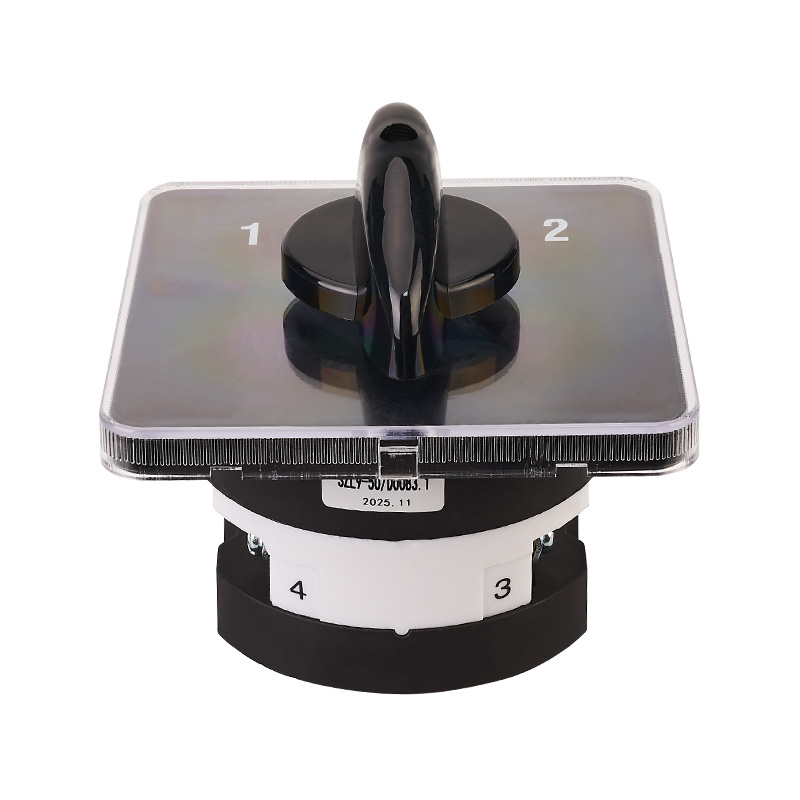

The SZL9-50/D0083.1 has a rated current of 50A and features a single-section, three-position structure. One power input is split into two power outputs, allowing for switching between two devices. Rotating the handle to position 1 connects the first set of L terminals, position 2 connects the second set of L terminals, and the middle position O disconnects all terminals. It is suitable for controlling high-current single-circuit applications. Through different position settings, it can achieve circuit state switching and selection. The product is suitable for installation in electrical control systems, for equipment operation control or circuit management. Its design meets conventional operating environment requirements and can be applied in various electrical control scenarios.
It is compatible with AC 50Hz~60Hz, rated operating voltage ≤440V, and rated insulation voltage of 690V electrical circuits.
It uses flame-retardant and high-temperature resistant materials, offering good insulation, safety, and durability. It features silver alloy contacts, thickened copper components, stable conductivity, and a long service life. It offers flexible installation options and customizable panel text. It is used in complete sets of electrical switchgear or for starting, speed control, and reversing of three-phase asynchronous motor loads, as well as for switching between main and auxiliary circuits. It can also be used for switching between main and auxiliary circuits in industrial automation equipment. It can completely replace other transfer switches.
