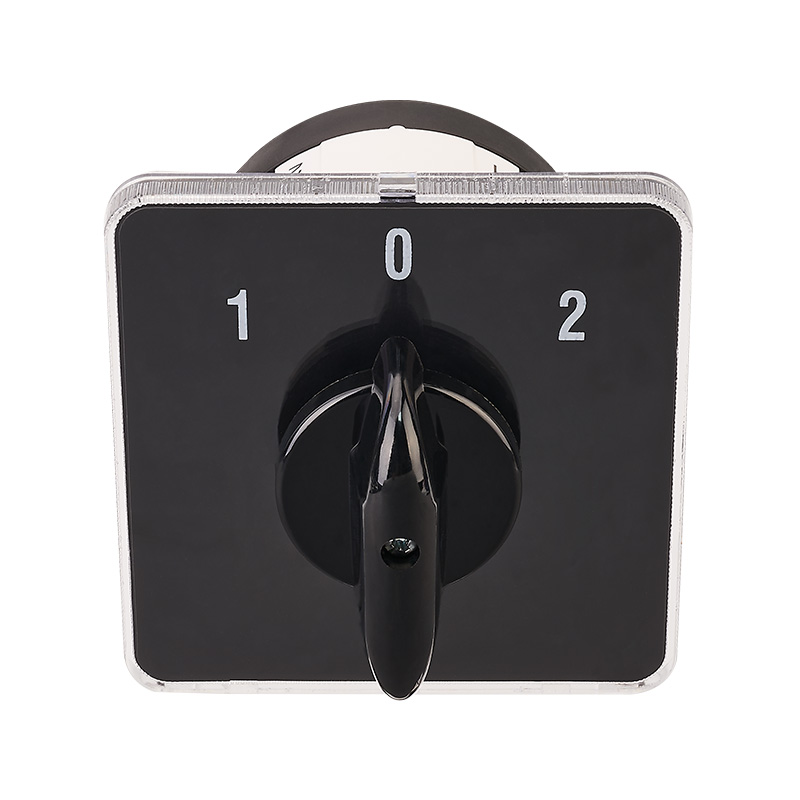

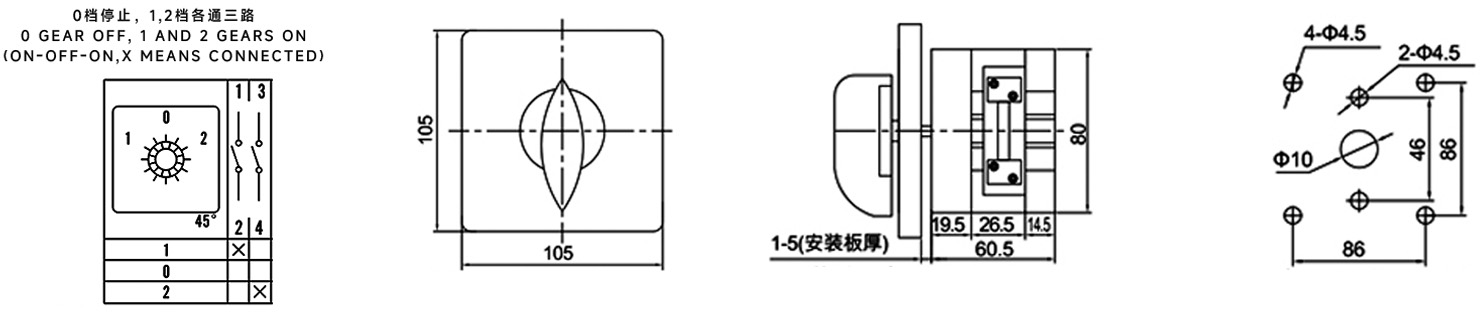

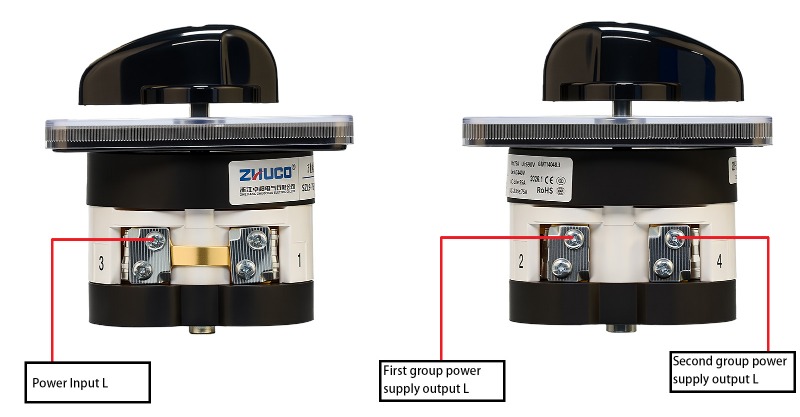

The SZL9-75/D0083.1 has a rated current of 75A and features a single-pole, three-position design. One power input is split into two power outputs, allowing for switching between two devices. Position 1 connects the first set of L terminals, position 2 connects the second set of L terminals, and the middle position (0) disconnects both. This three-position setting allows for switching between different operating states. It is commonly used in equipment control and power selection applications, meeting the needs of high-current applications.
It is suitable for electrical circuits with AC 50Hz~60Hz, a rated operating voltage of ≤440V, and a rated insulation voltage of 690V. It features flame-retardant and high-temperature resistant materials, good insulation, safety and durability, silver alloy contacts, thickened copper components for stable conductivity, a long service life, flexible installation options, and customizable panel text.
It is commonly used in complete sets of electrical switchgear for speed control and direction switching, and as a converter for main and auxiliary circuits. It can also be used for switching between main and auxiliary circuits in industrial automation equipment. It can completely replace other transfer switches.
