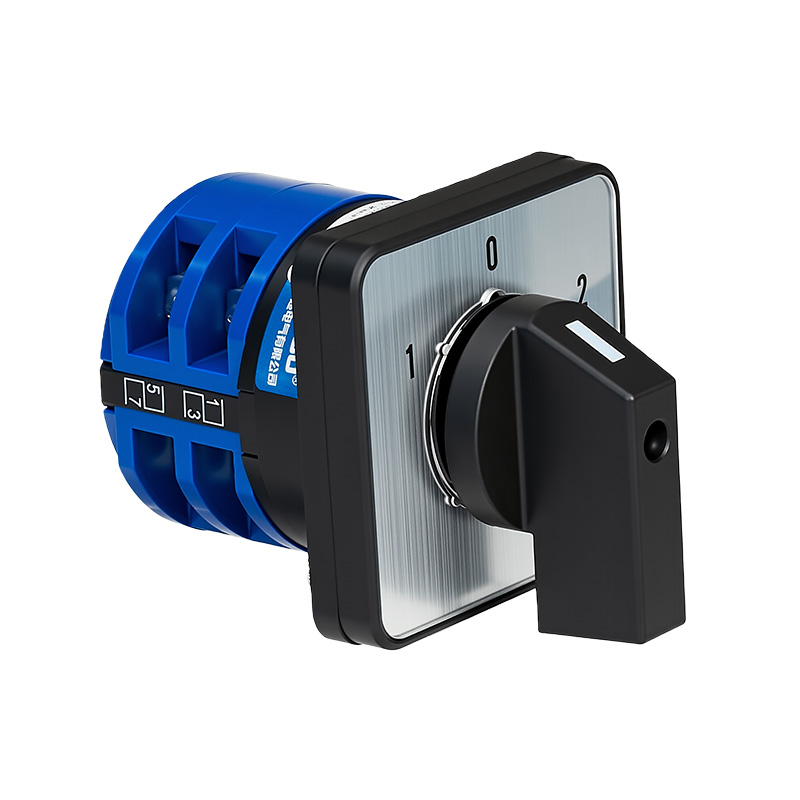

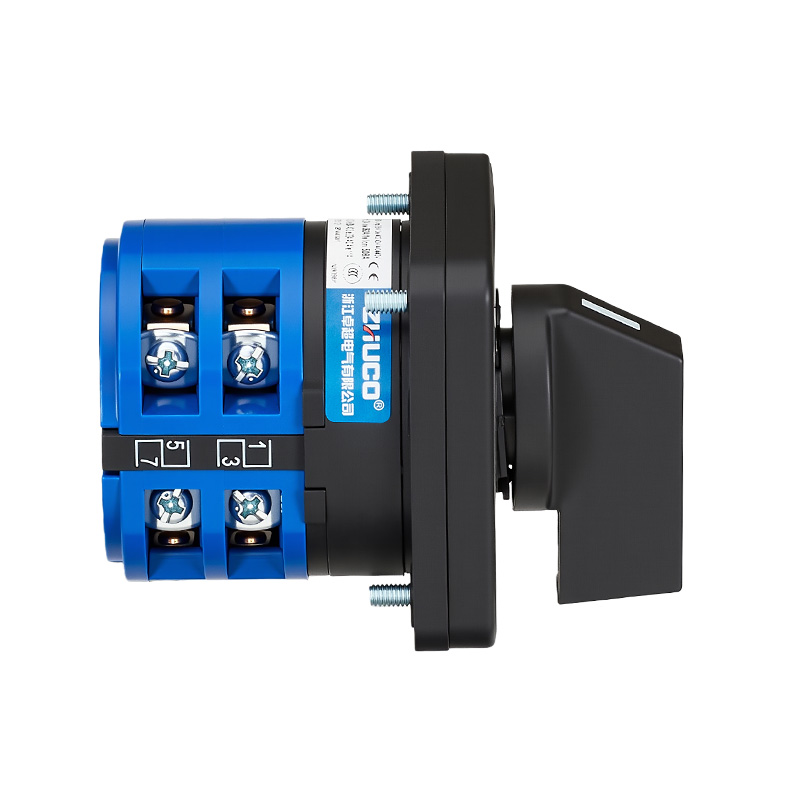

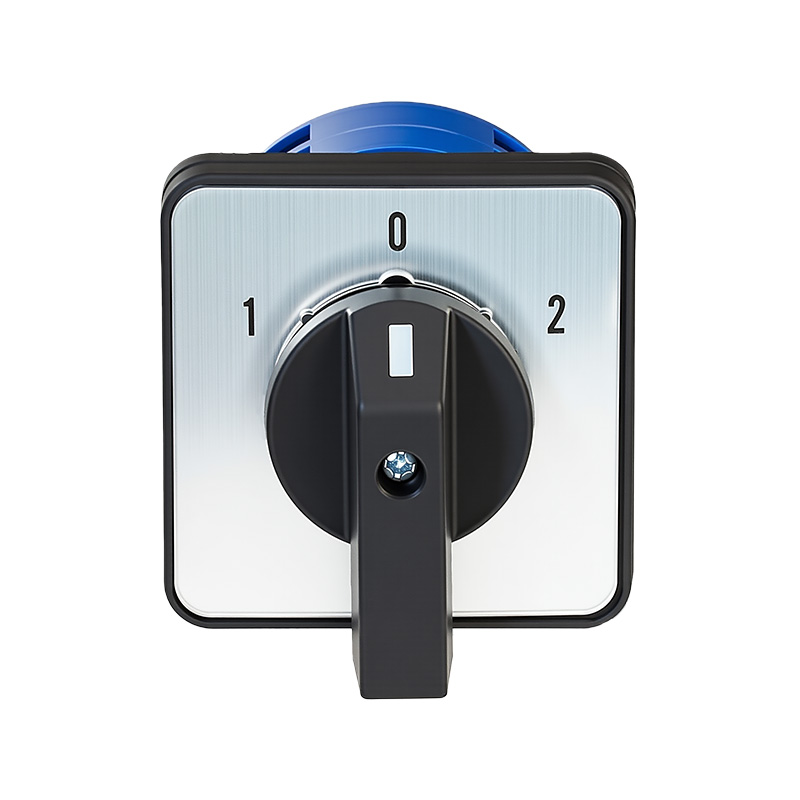

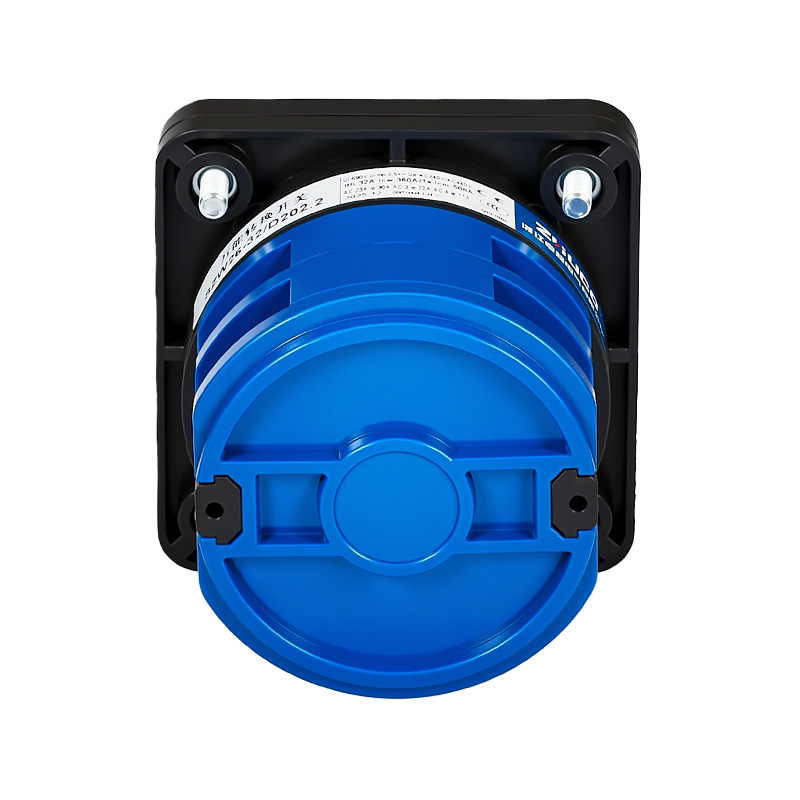

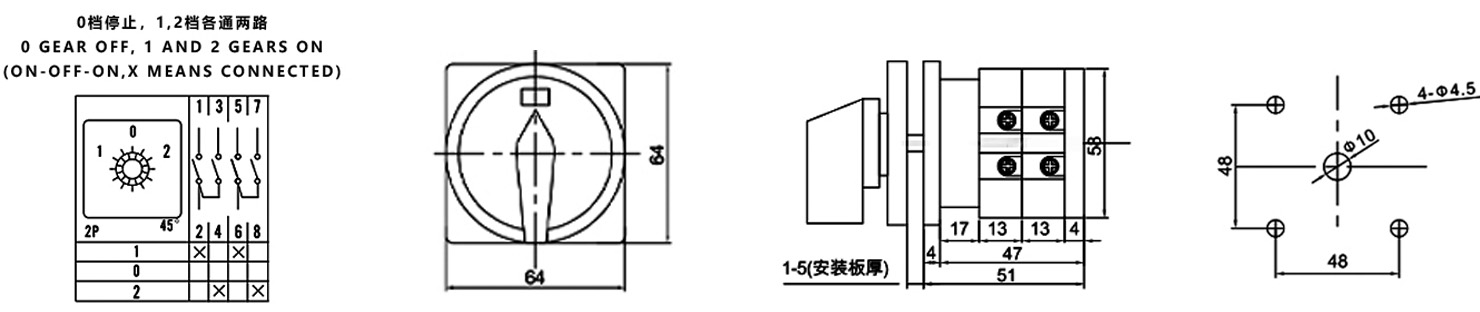

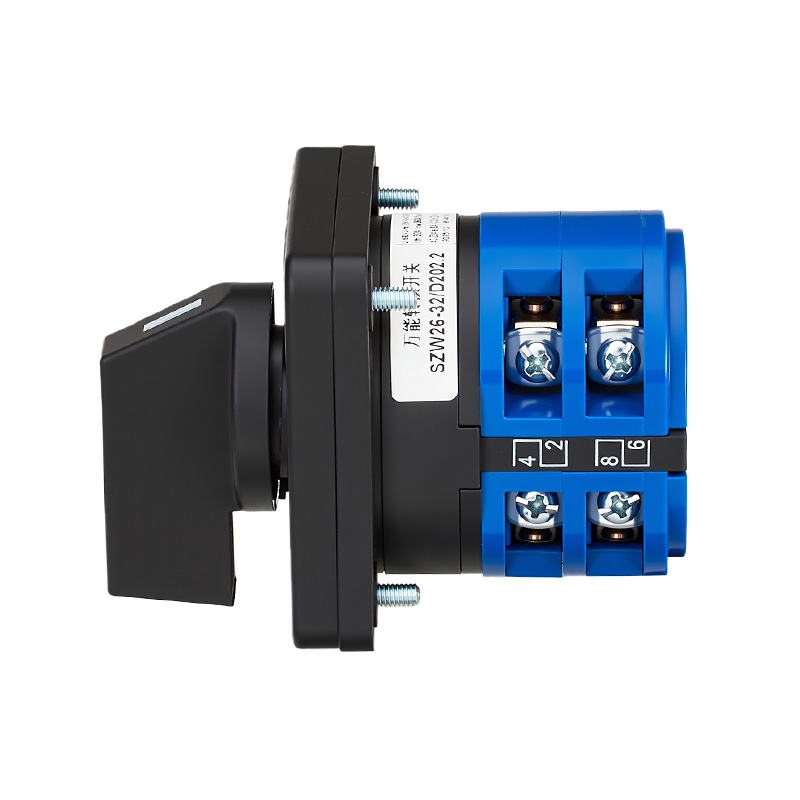

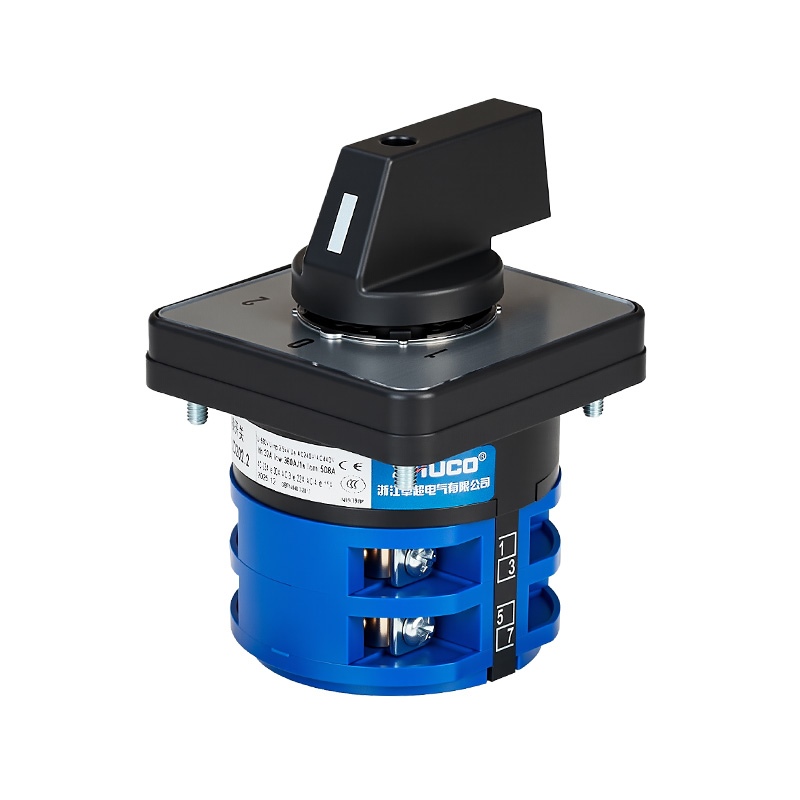

SZW26-32 D202.2 Changeover Switch (Three-Position, Two-Pole) This product is a three-position (1-0-2), two-pole (two-layer) rotary changeover switch designed for synchronous switching between two independent electrical circuits, and features a central safety disconnect position (position 0). It has a rated current of up to 32A and is suitable for AC 440V/60Hz or DC 240V and below circuits. The contact action logic is as follows: In position "1", the first set of contacts (1-2) and the second set of contacts (5-6) are simultaneously connected; in position "0" (middle position), all contacts are disconnected; in position "2", the first set of contacts (3-4) and the second set of contacts (7-8) are simultaneously connected. It uses silver alloy contacts and thickened copper conductors to ensure low contact resistance, high conductivity, and durability under high current. The housing is made of flame-retardant and high-temperature resistant material, suitable for industrial environments from -25°C to +40°C, with a mechanical life of 100,000 cycles and an electrical life of 30,000 cycles (at rated load).
Application Scenarios:
This switch is specifically designed for complex control circuits requiring synchronous control or switching of two high-current loads, power supplies, or signals, and requiring a clear intermediate disconnect position.
Dual Load Switching: Controls the main/standby switching or operating mode selection of two high-power devices (such as motors, heaters).
Dual Power Supply Conversion: Used for manual switching between two independent power sources (such as mains power/generator), with the intermediate "0" position providing safe isolation.
Motor Control: Achieves forward and reverse control of three-phase motors (requires appropriate wiring), or speed switching of dual-speed motors.
Power Distribution and Automation: In industrial control cabinets, it serves as a manual selection switch for synchronously operating two independent circuits, providing high reliability and clear position indication.
