The SC-68/3V is a panel-mounted voltage measurement selector switch designed specifically for three-phase AC systems. Its core function is to enable safe and convenient switching measurements of all critical line voltages (L-L) and phase voltages (L-N) through a single switch in conjunction with a voltmeter.
2. Technical Description
Electrical Specifications: Rated values: Rated operating current 20A, rated operating voltage ≤600V AC, rated insulation voltage 690V, suitable for 50Hz/60Hz AC systems.

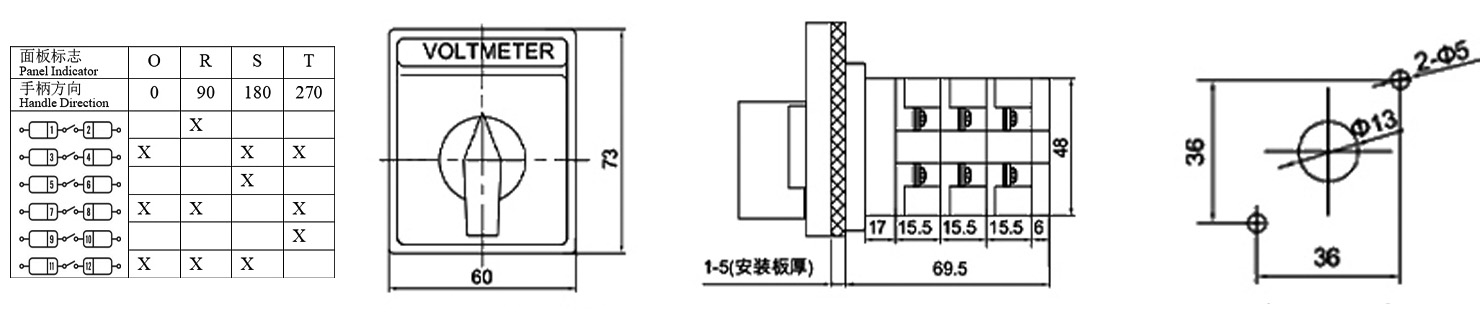

Function Definition: Provides seven clear function selections as indicated on the panel, including: Position "0" (OFF) safety disconnect position, where the voltmeter is completely disconnected from the circuit being measured.
Line Voltage (L-L) Measurement Ranges (3 ranges): Used to measure phase-to-phase voltage.
R-S: Measures the line voltage between phase R and phase S.
S-T: Measures the line voltage between phase S and phase T.
T-R: Measures the line voltage between phase T and phase R.
Phase Voltage (L-N) Measurement Ranges (3 ranges): Used to measure the voltage between each phase and the neutral line (N) (assuming the system has a neutral line).
R-N: Measures the voltage between the R phase and the neutral line.
S-N: Measures the voltage between the S phase and the neutral line.
T-N: Measures the voltage between the T phase and the neutral line.

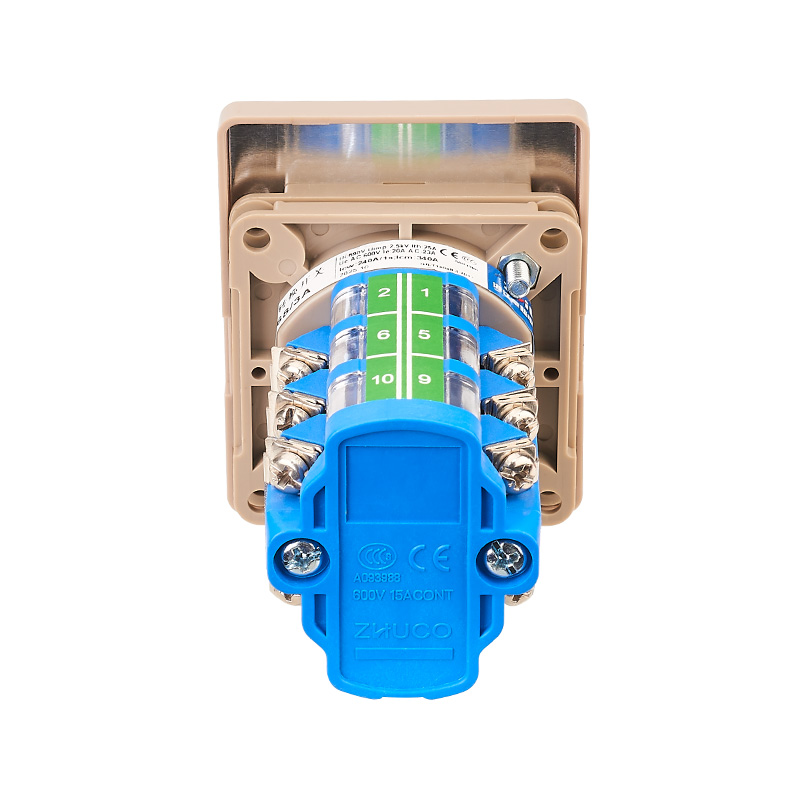

Internal Structure: Employs a three-section (three-layer) contact layer and a cam-operated mechanism to ensure accurate and reliable switching between ranges.
Safety Design: Internal logic circuitry prevents short circuits during measurement, ensuring operational safety.
Materials and Manufacturing Process: Uses a flame-retardant shell, silver alloy contacts, and thickened copper conductors to ensure reliable electrical connections.
3. Application Scenarios
This switch is an essential tool for voltage monitoring, system debugging, and maintenance diagnosis in three-phase power distribution and control systems. Widely used in: Low-voltage power distribution systems: Installed on the panels of low-voltage distribution cabinets, power distribution boxes, and capacitor compensation cabinets for daily inspections to monitor three-phase voltage balance, check for phase loss, over/under voltage, and neutral point potential. Motor and Equipment Control: Monitors power supply quality in motor control centers (MCCs), frequency converter cabinets, and large-scale process equipment control to ensure stable equipment operation.
Critical Facility Power Monitoring: Used in generator control panels, automatic power supply (ATS) cabinets, uninterruptible power supplies (UPS), and data center power distribution units (PDUs) to confirm input/output voltage status.
System Commissioning and Maintenance: Provides electrical engineers with a fast, safe, and comprehensive means of voltage measurement, facilitating fault diagnosis, power quality analysis, and operational recording.
