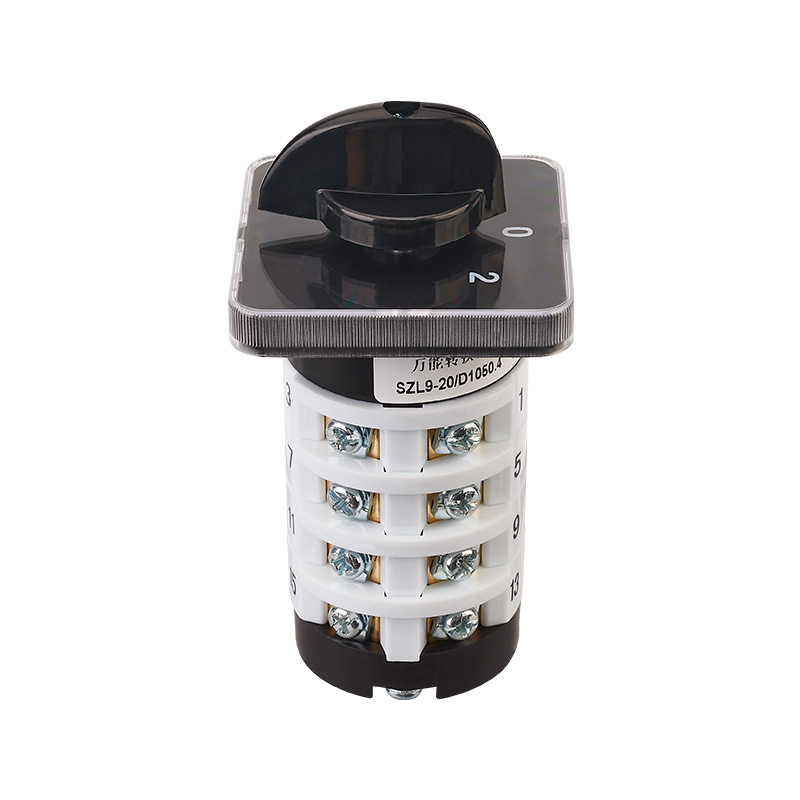

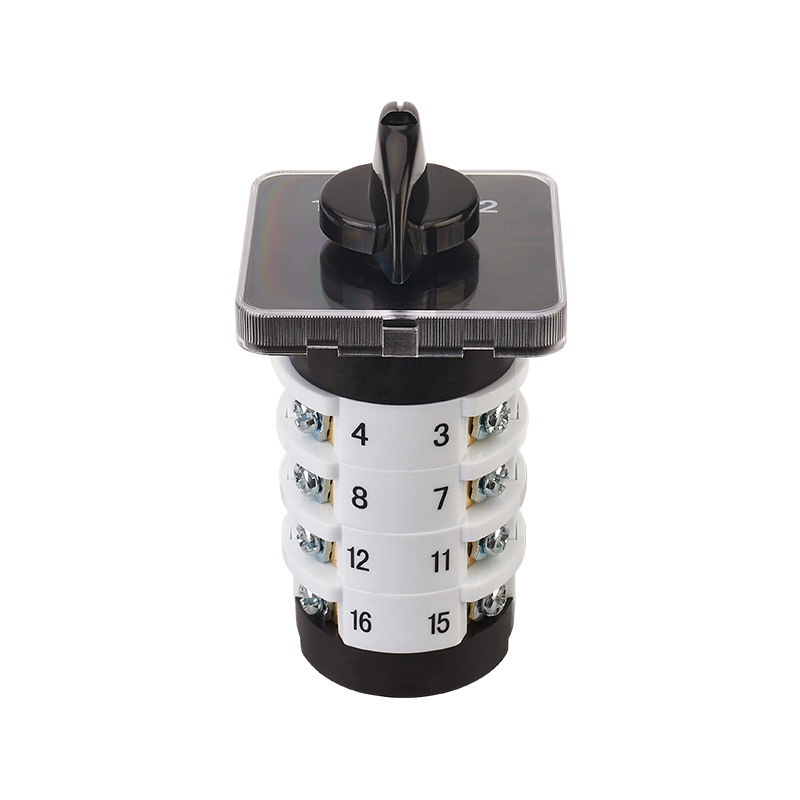

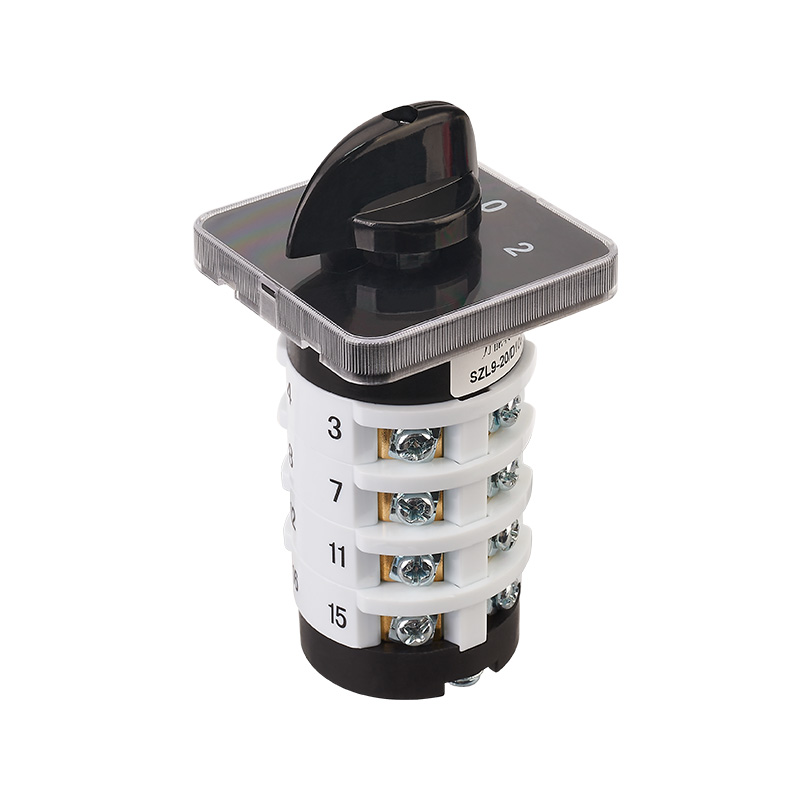

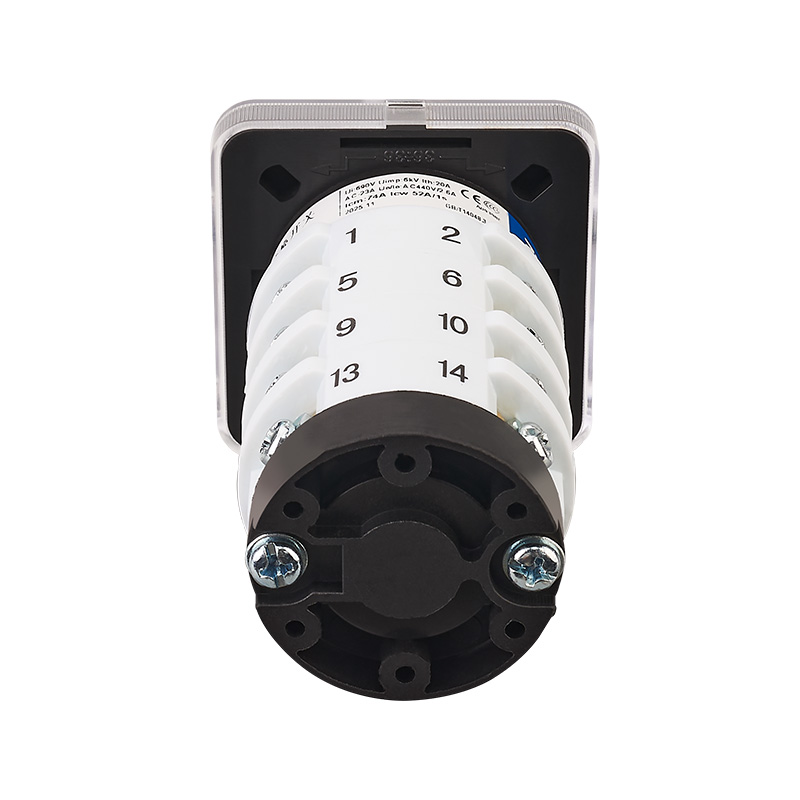

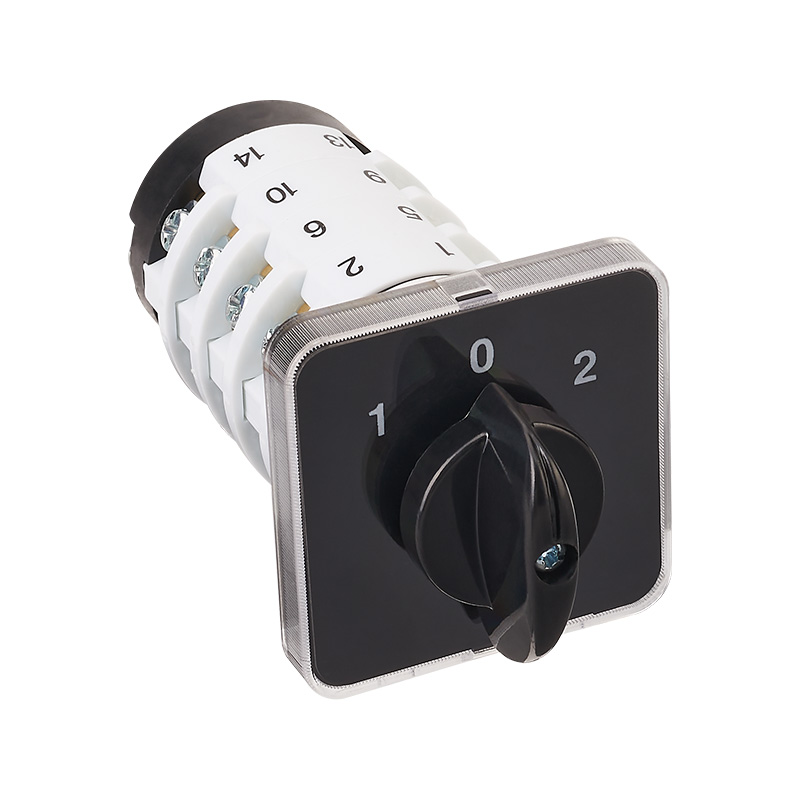

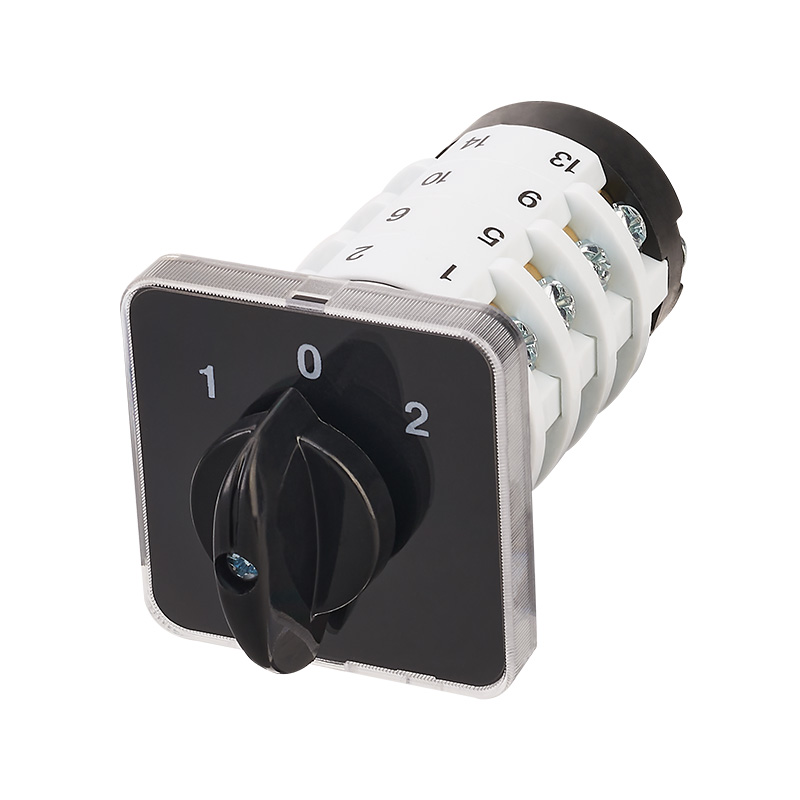

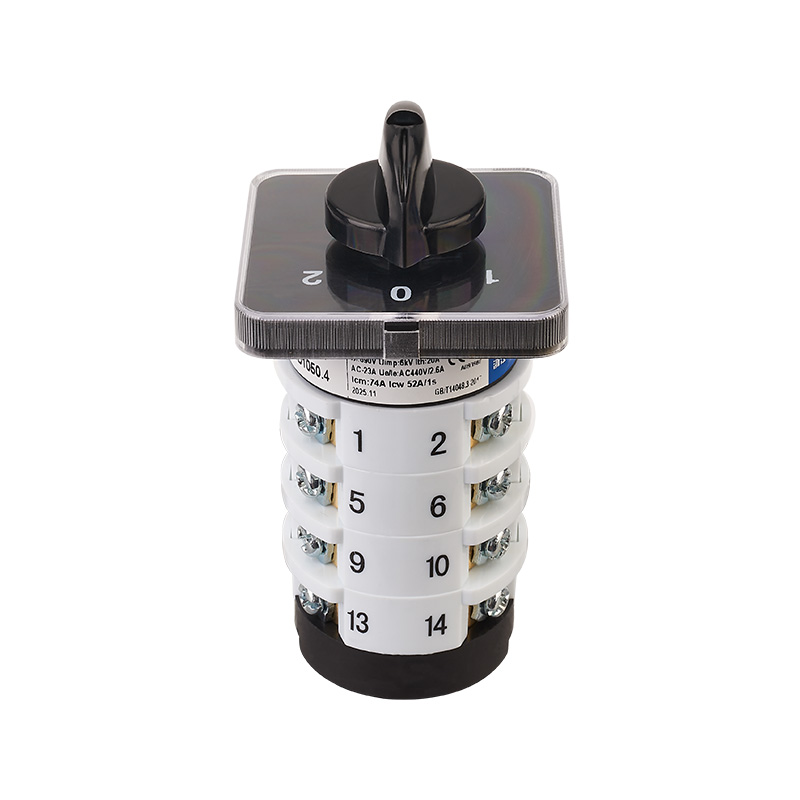

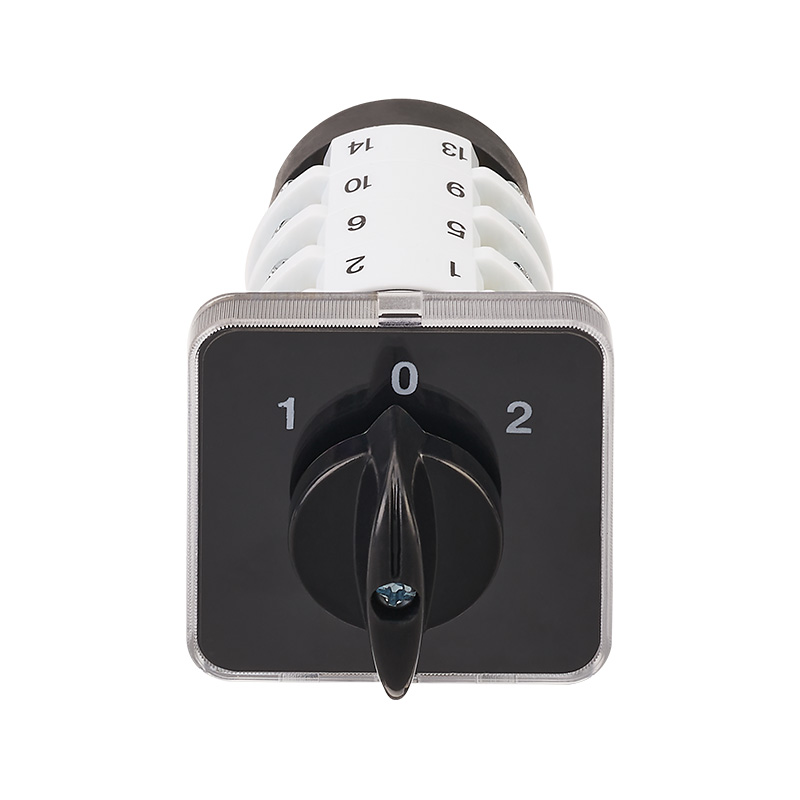

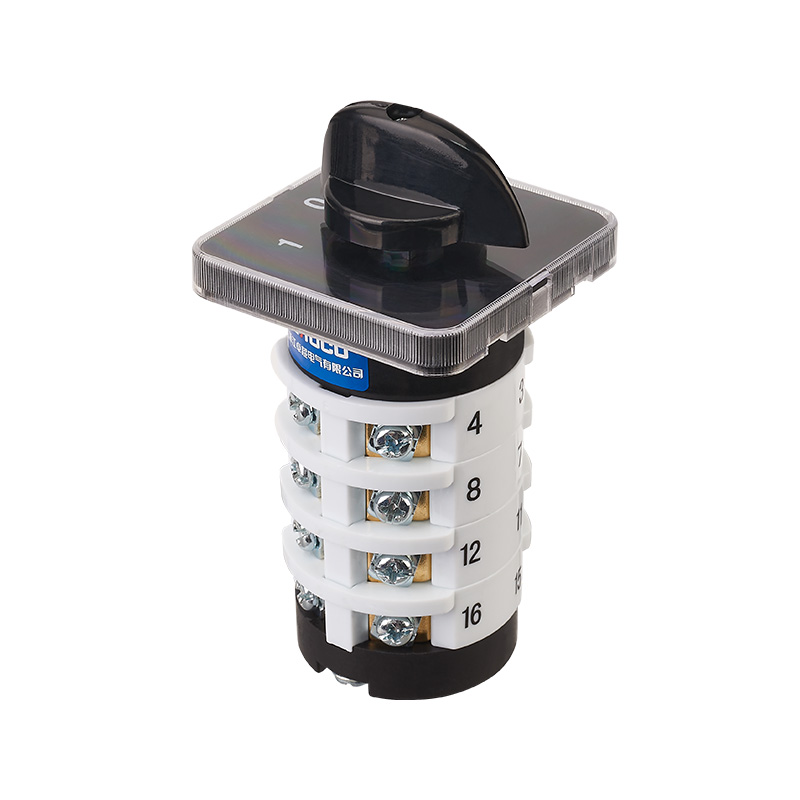

Home / Product / Universal Changeover Switch / SZL9 Multi-function Power Changeover Switch / ZHUCO SZL9-20/D1050.4 20A/4P Four-Pole Three-Position 102 Changeover Switch
  • PRODUCT SIZE

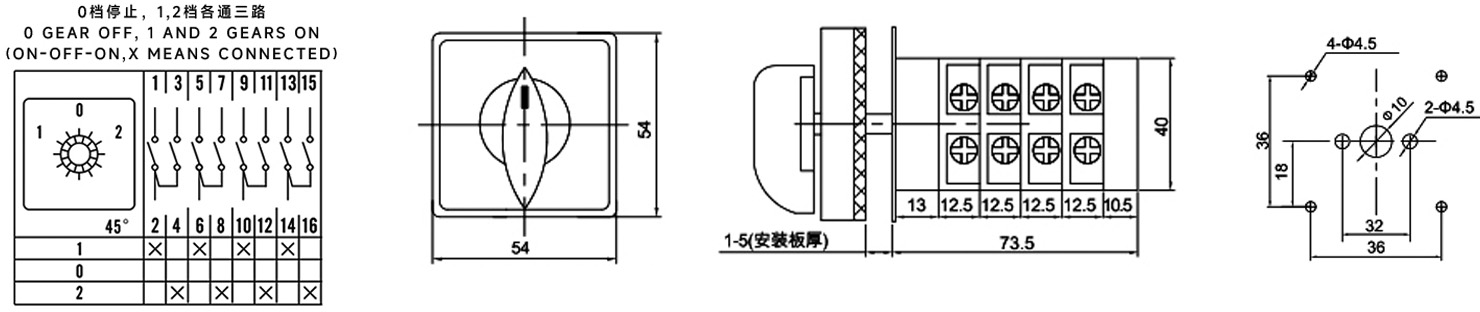

    Internal wiring diagram
    Panel size(mm)
    Shape size(mm)
    lnstallation size(mm)
  • TECHNICAL PARAMETERS
    Name Change Over Switch
    Brand ZHUCO
    Model SZL9-20/D1050.4
    Rated working voltage AC440V
    Rated insulation voltage 690V
    Rated impulse withstandvoltage 6kV
    Conventional heating current 20A
    Rated working current AC-23A:le: 20A;le:11A;
    Rated short-time withstand current 180A/1s
    Rated short-circuit making capacity 254A
    Use category AC-23A
    Tier Terminals 4
    Meet the standards GB/T 14048.3-2017
    CE testing standard EN 60947-5-1:2017
    CE Certificate number TLZJ21072132376
    Weight/pc 0.222
    Pcs/carton 100
    Inner box size 11.5*5.5*6.2

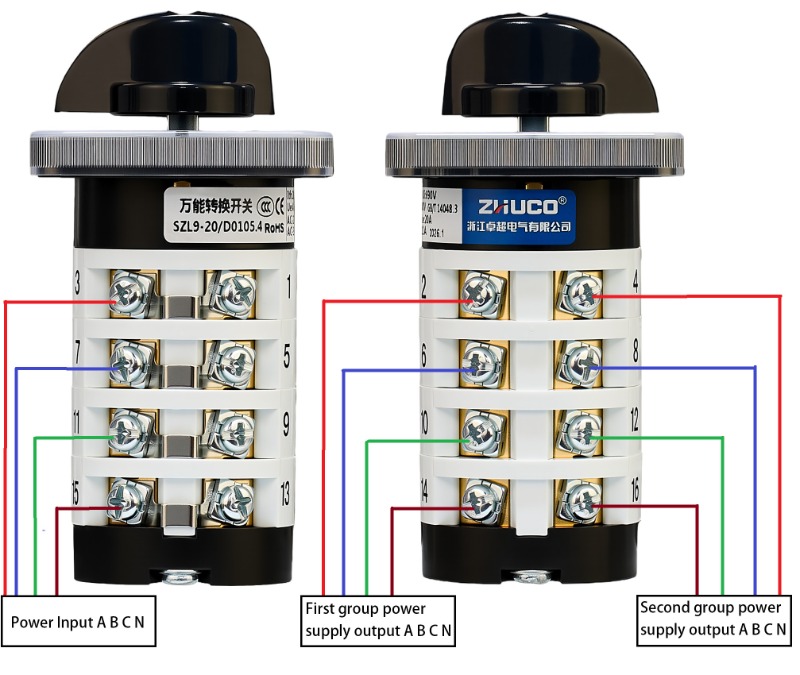

  • Wiring Diagram


    Model: SZL9-20/D1050.4
    Function: Splits one power input into two power outputs for switching between two devices. When the handle is turned to position 1, the first group ABCN is energised; at position 2, the second group ABCN is energised; at the central 0 position, all connections are de-energised.
