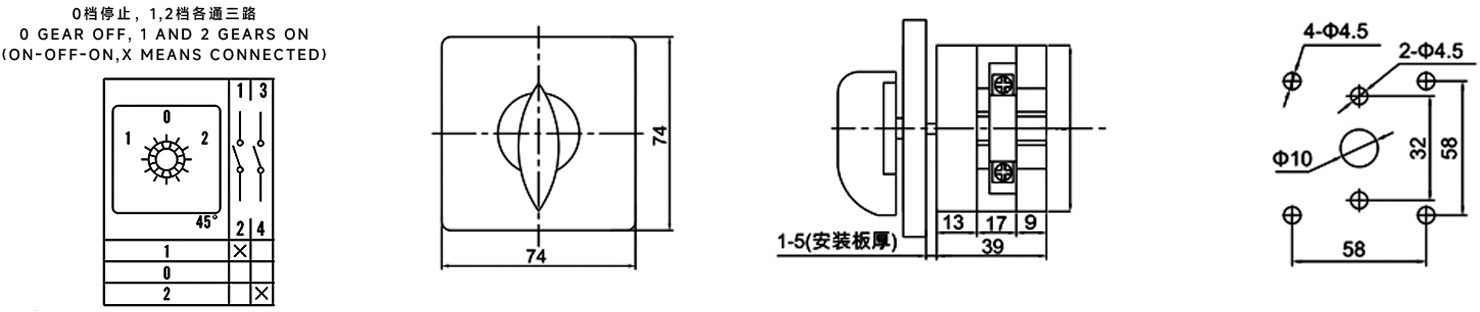

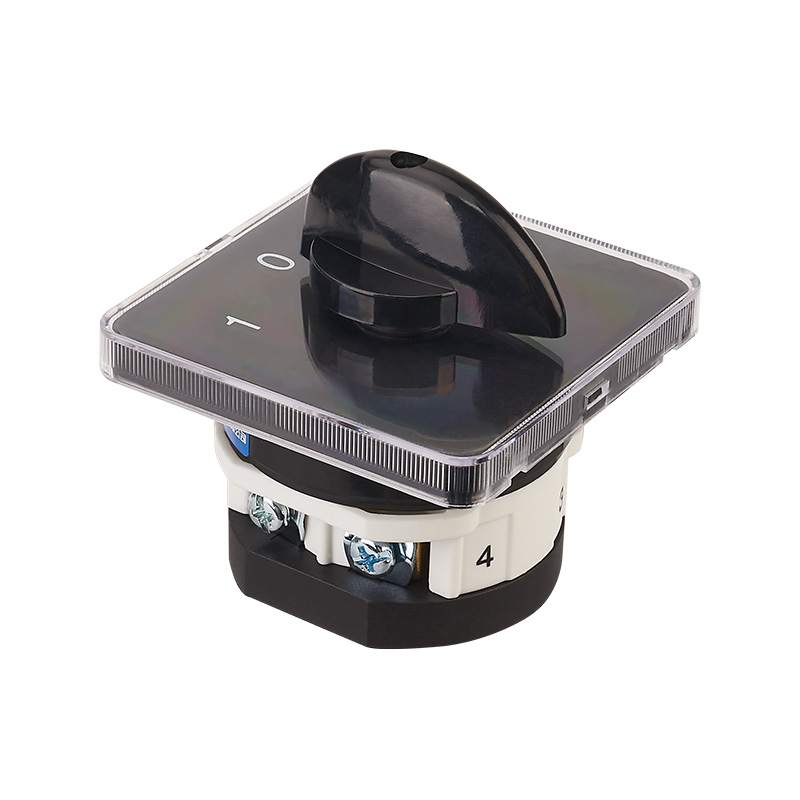

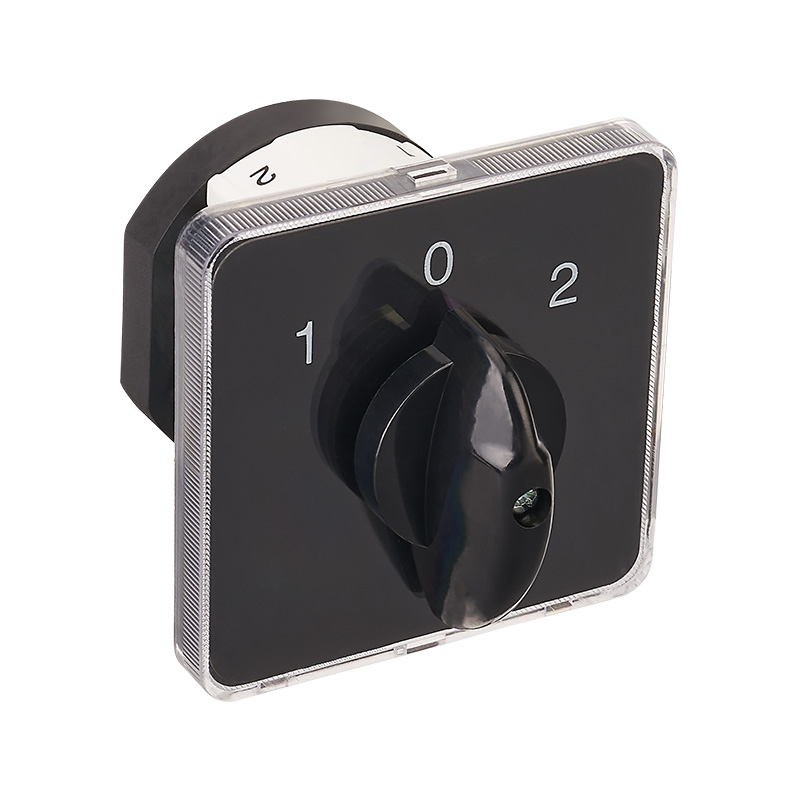

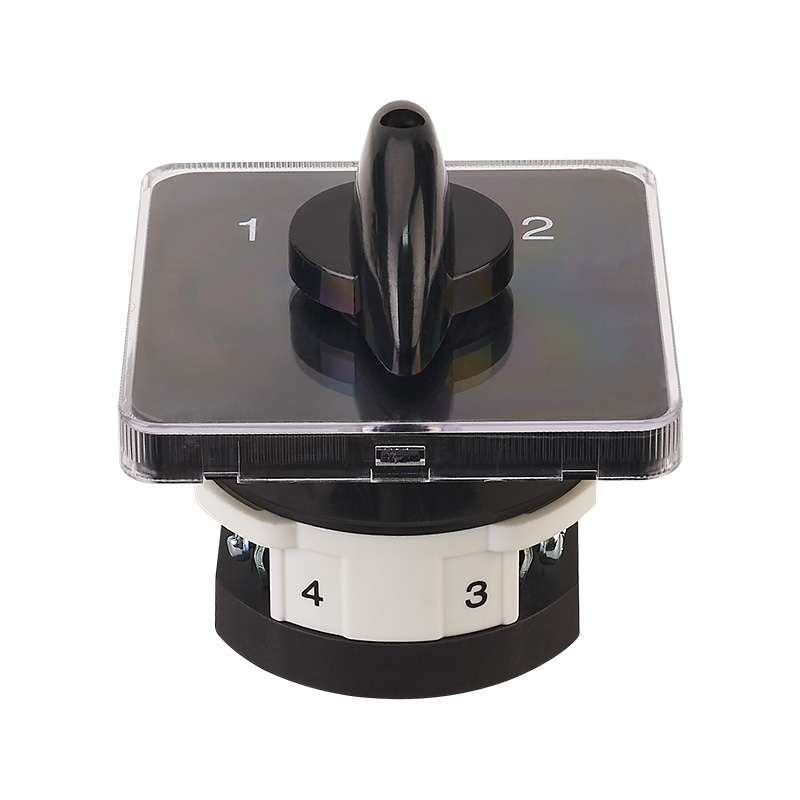

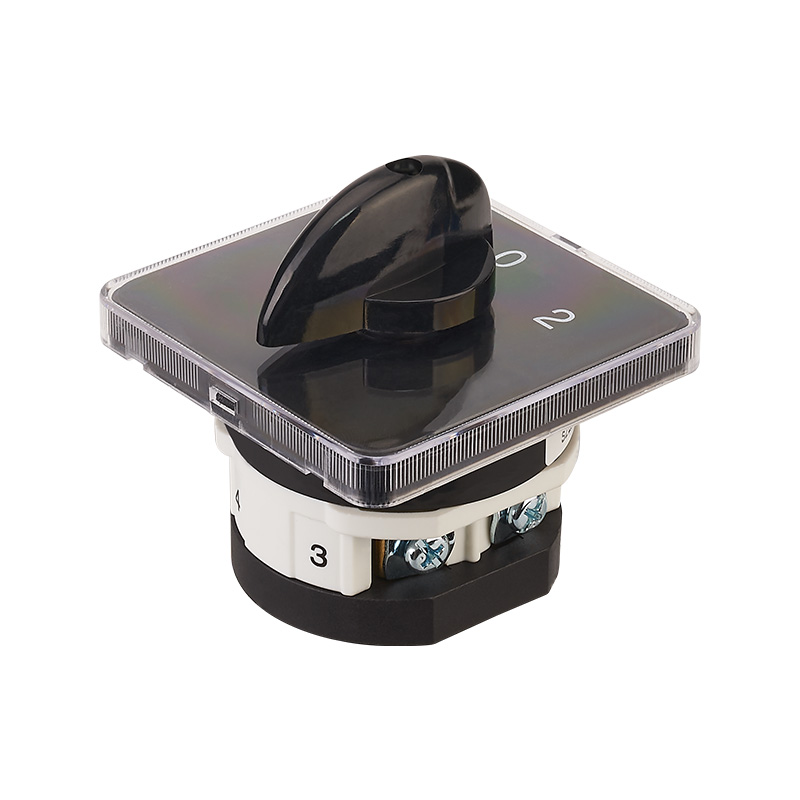

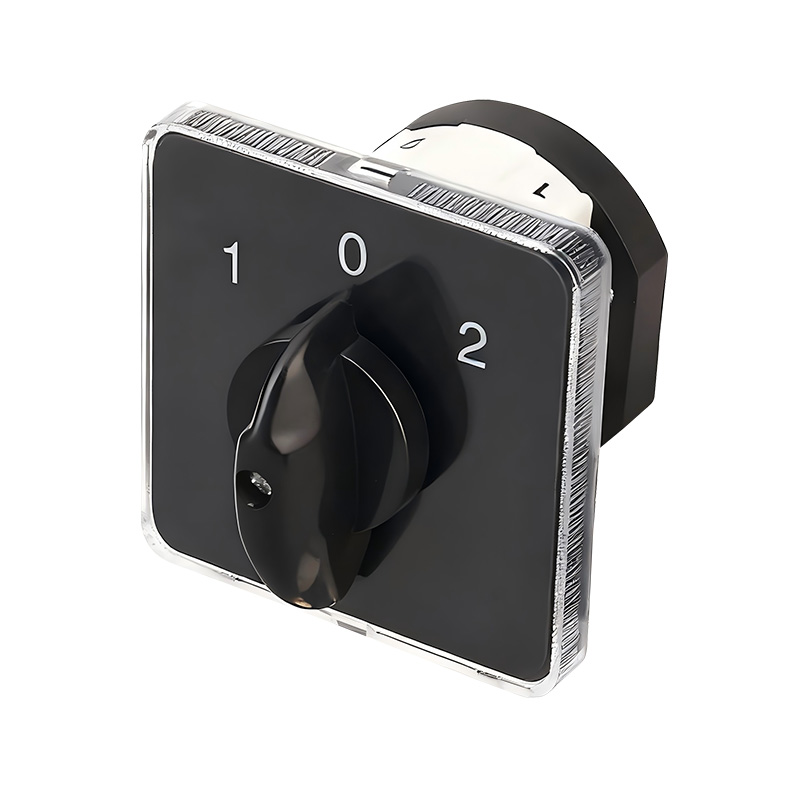

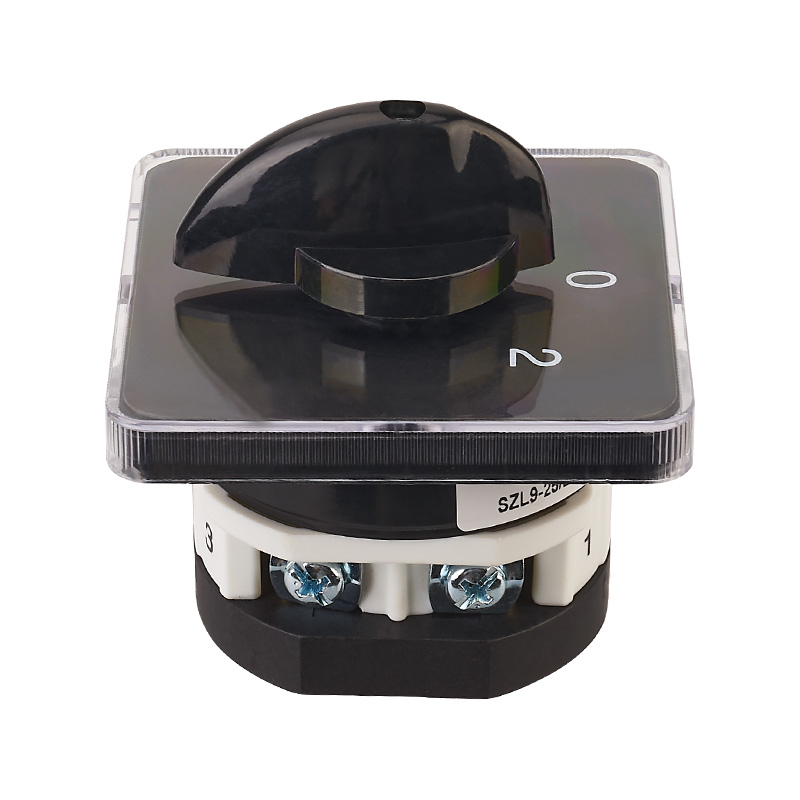

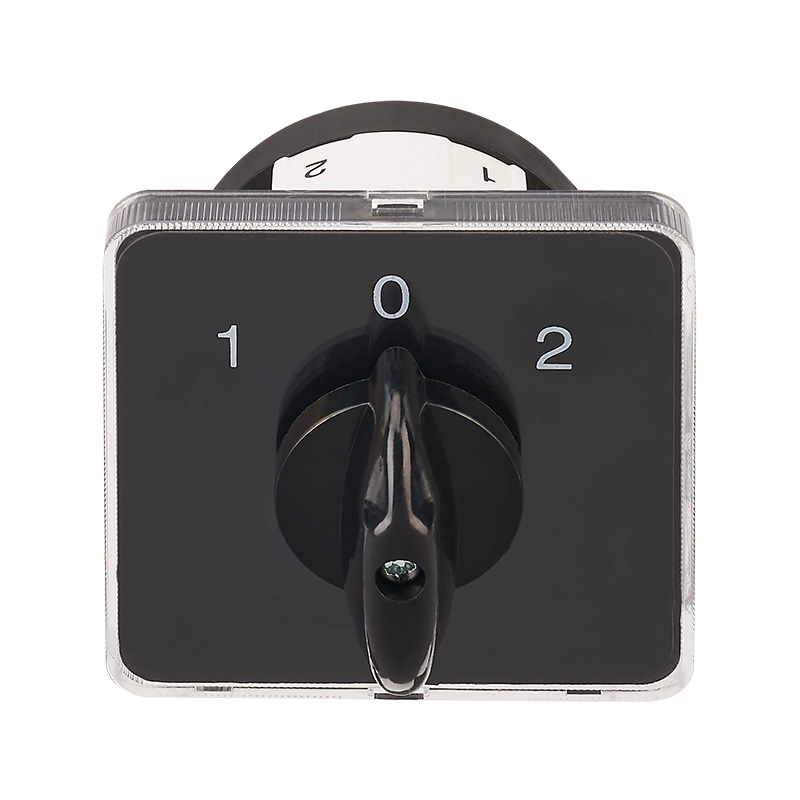

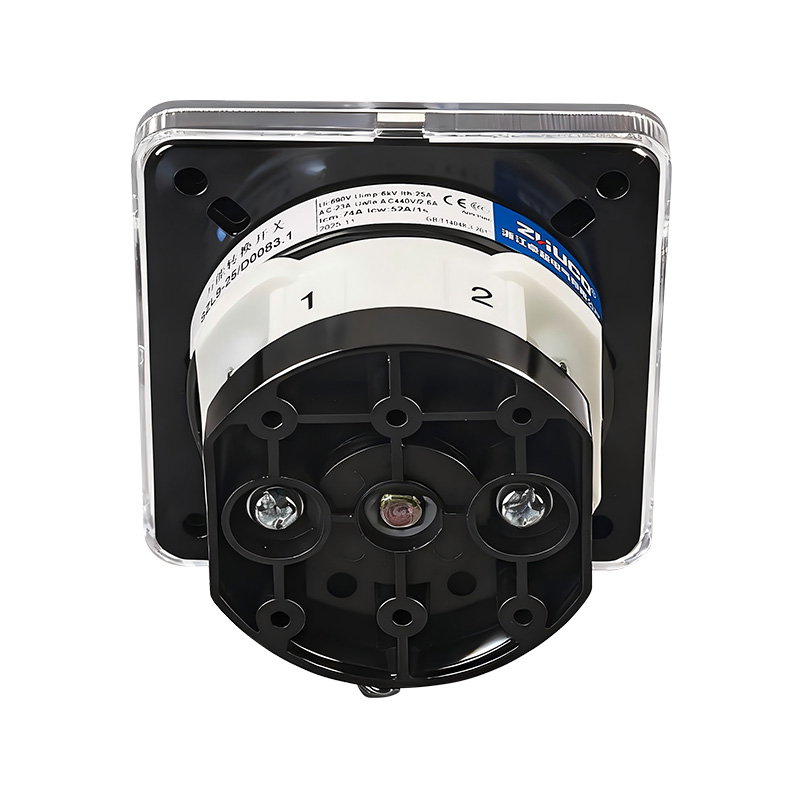

The SZL9-25/D0083.1 has a rated current of 25A and features a single-pole, three-position design, suitable for single-circuit electrical control. Different operating states can be selected through position switching, offering simple and intuitive operation. The product's structural design emphasizes stability and practicality, making it suitable for installation in control panels or power distribution systems. It can be used in general industrial and equipment control applications, meeting basic needs for circuit switching and management.
It is compatible with AC 50Hz~60Hz electrical circuits, with a rated operating voltage of ≤440V and a rated insulation voltage of 690V. It is used in complete sets of electrical switchgear or for starting, speed control, and reversing of three-phase asynchronous motor loads, as well as for switching between main and auxiliary circuits. It can also be used for switching between main and auxiliary circuits in industrial automation equipment.
Made with high-quality materials, it features flame-retardant, high-temperature resistant materials, good insulation, thickened copper components, and silver alloy contacts, ensuring a long service life, low resistance, excellent conductivity, and no arcing. The rotating handle and high-quality knob provide easy and simple operation. Panel text can be customized as needed.
Widely used in power, transportation, machinery, and automation equipment, among other industries, it meets your needs in various application scenarios.
Mechanical life: 0.3 x 10⁶ cycles, operating frequency 120 times/hour.
Electrical life: 0.6 x 10⁶ cycles, operating frequency 120 times/hour.
