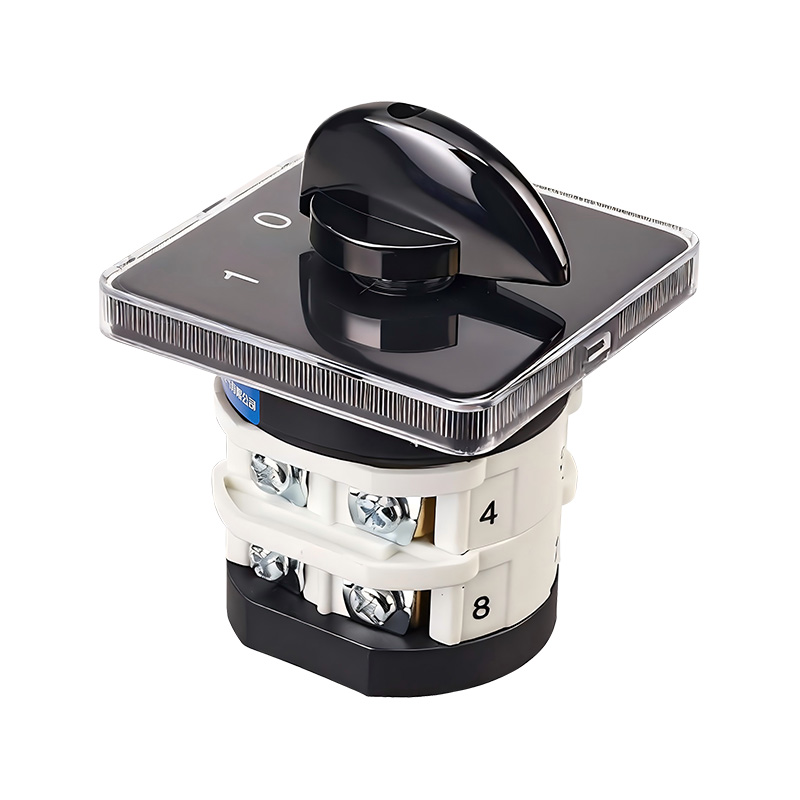

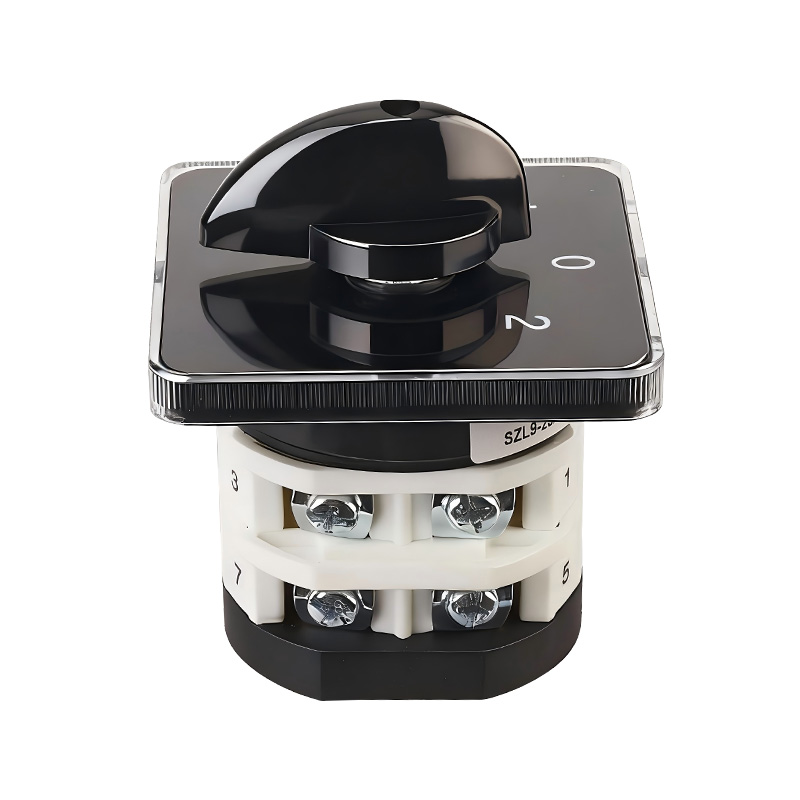

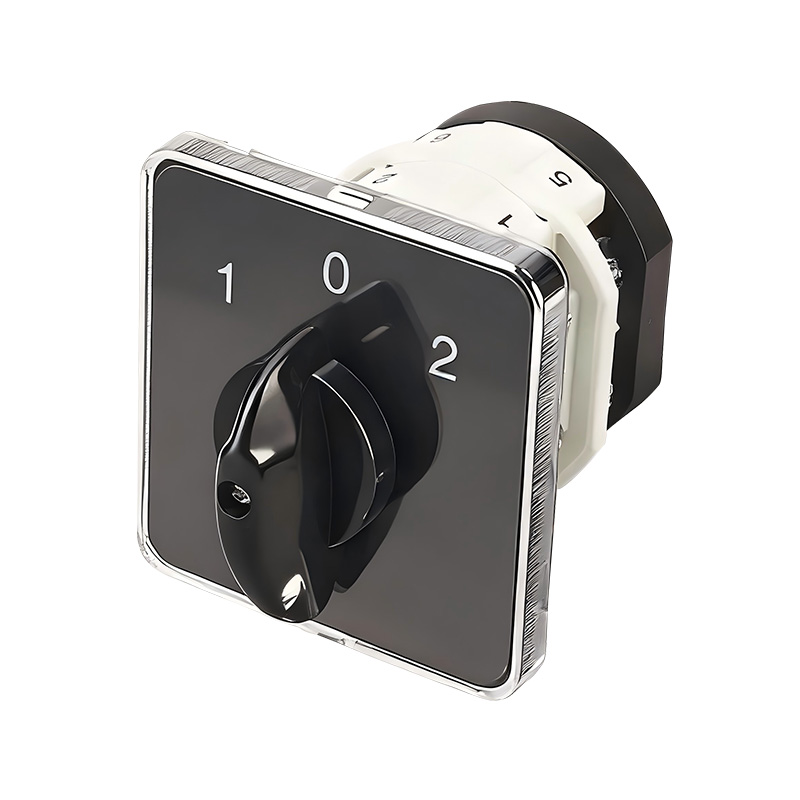

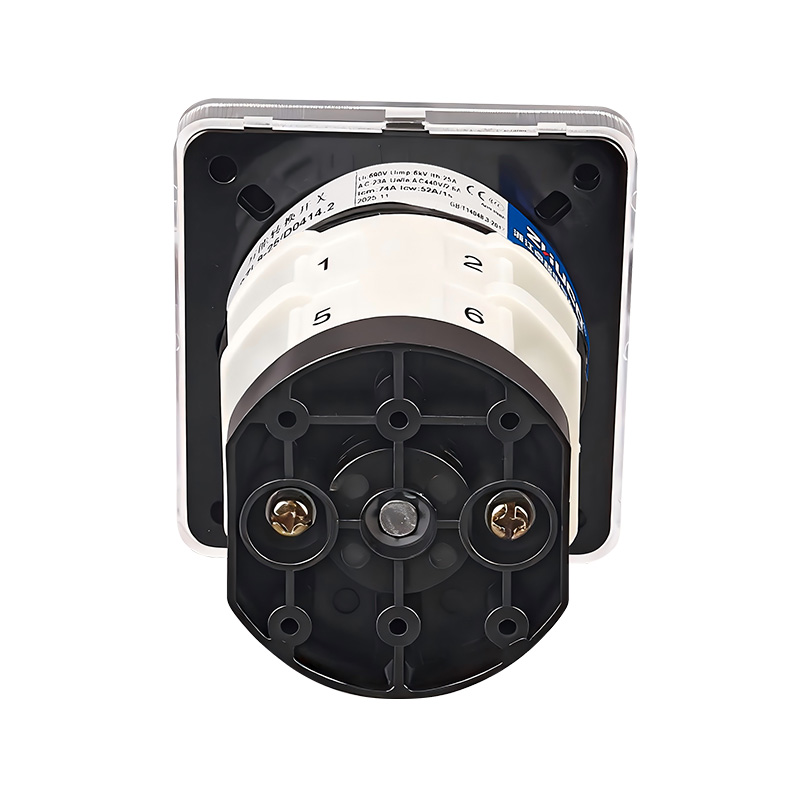

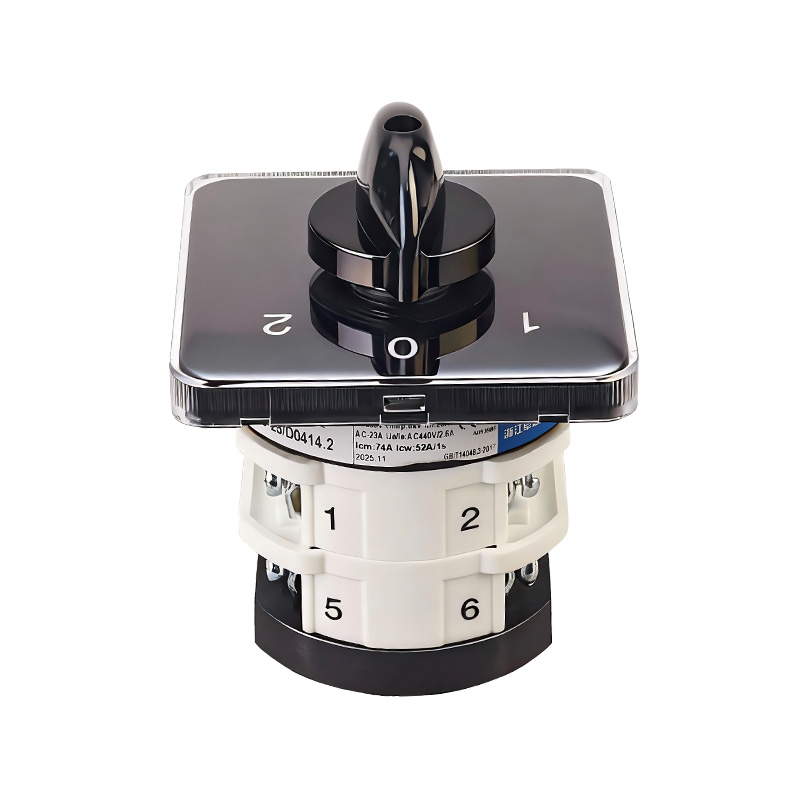

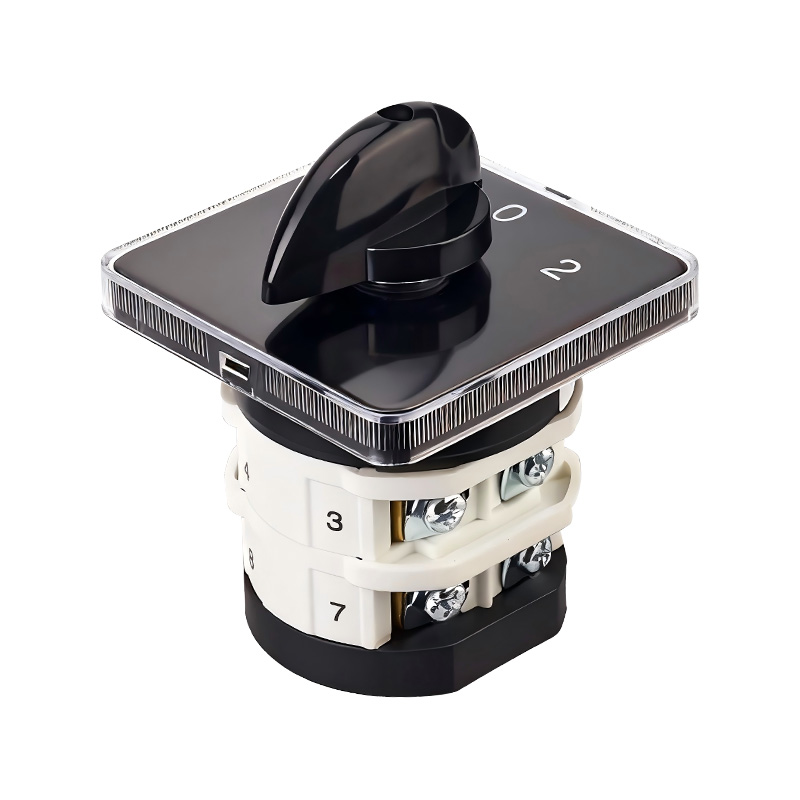

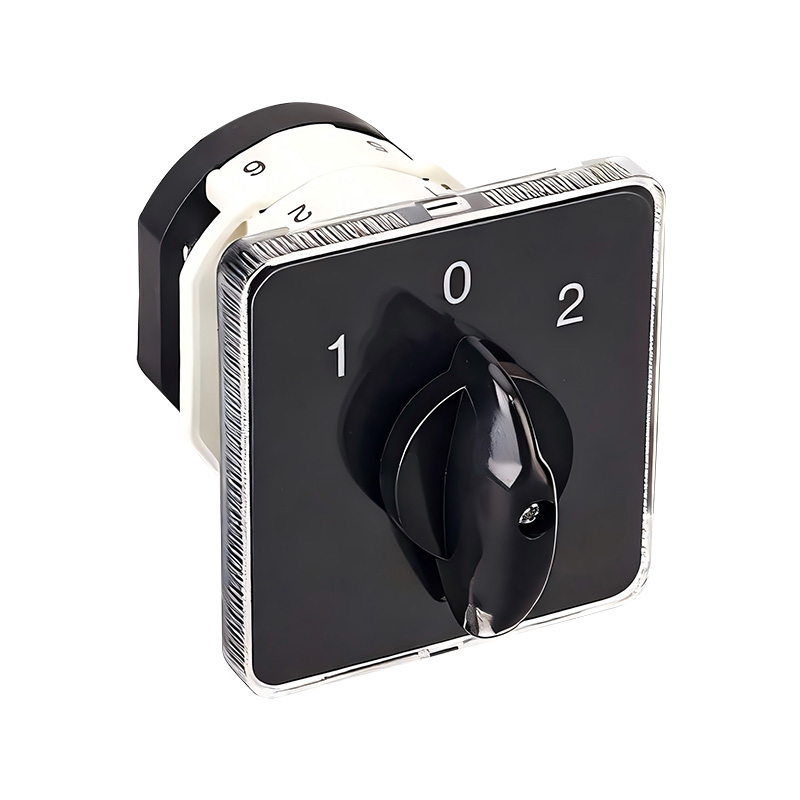

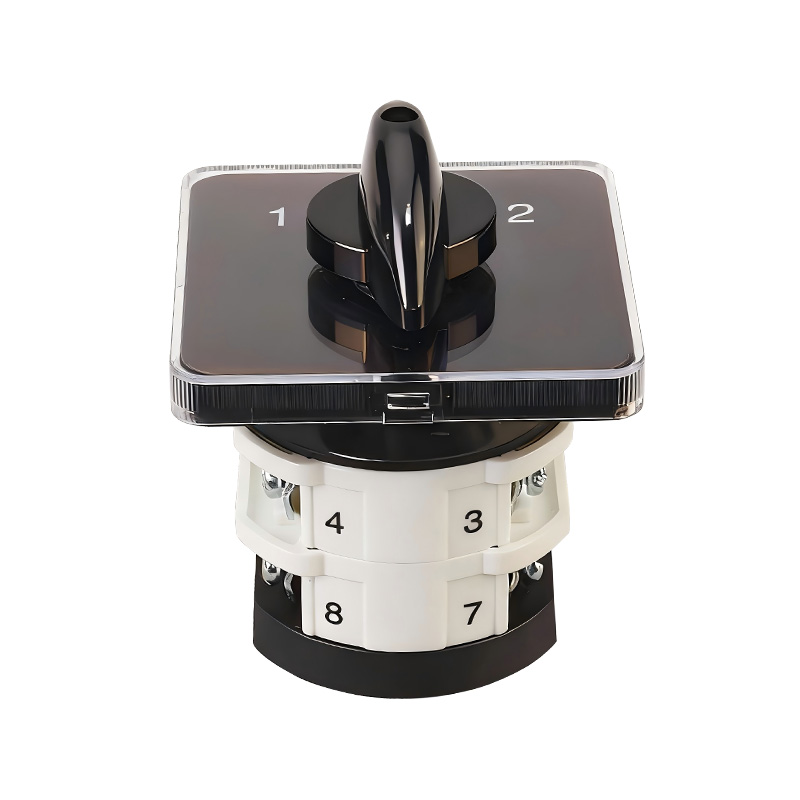

The SSZL9-25/D0414.2 is a two-pole, three-position changeover switch with a rated current of 25A, capable of switching between two circuits. The three-position setting allows for the selection of different circuit combinations or operating modes. Its rational design facilitates easy installation and operation, making it suitable for various electrical control applications. It provides a stable and reliable method for circuit management in equipment control, line switching, and testing systems.
It is compatible with AC 50Hz~60Hz electrical circuits with a rated operating voltage of ≤440V and a rated insulation voltage of 690V. It is used in complete sets of electrical switchgear or for starting, speed control, and reversing of three-phase asynchronous motor loads, as well as for switching between main and auxiliary circuits. It can also be used for switching between main and auxiliary circuits in industrial automation equipment. It can completely replace other changeover switches.
It features flame-retardant, high-temperature resistant materials, good insulation, thickened copper components, silver alloy contacts for long service life, low resistivity, good conductivity, and no arcing. It has a rotating handle for simple operation, a high-quality knob for easy switching, and customizable panel text.
It features a closed design to prevent dust ingress. Wiring screw specifications: M5, connecting wire range: 1.0-6.0mm².
Mechanical life: 0.3 x 10⁶ cycles, operating frequency: 120 times/hour.
Electrical life: 0.6 x 10⁶ cycles, operating frequency: 120 times/hour.
