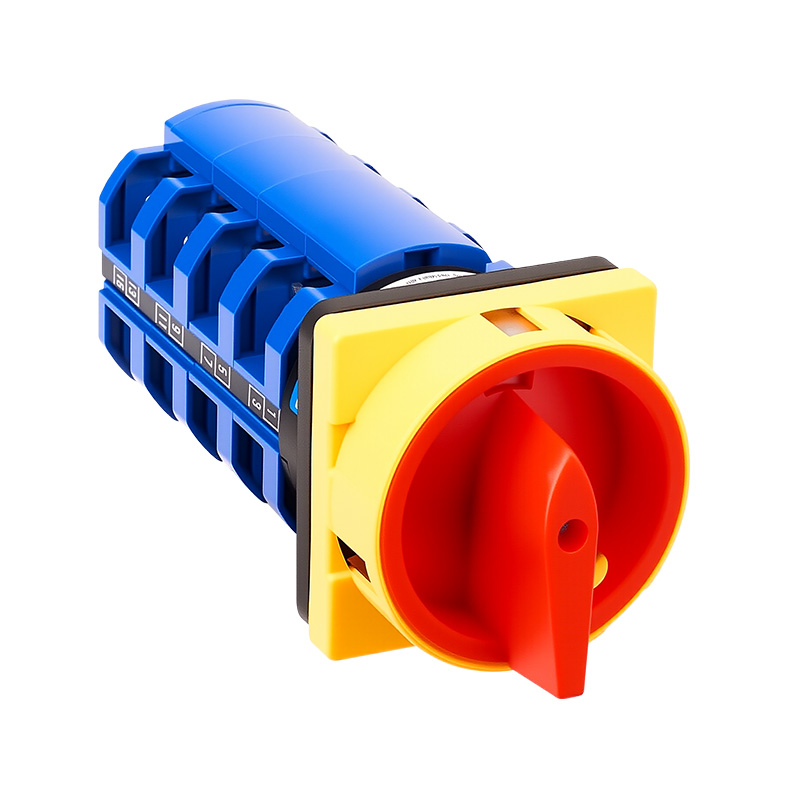

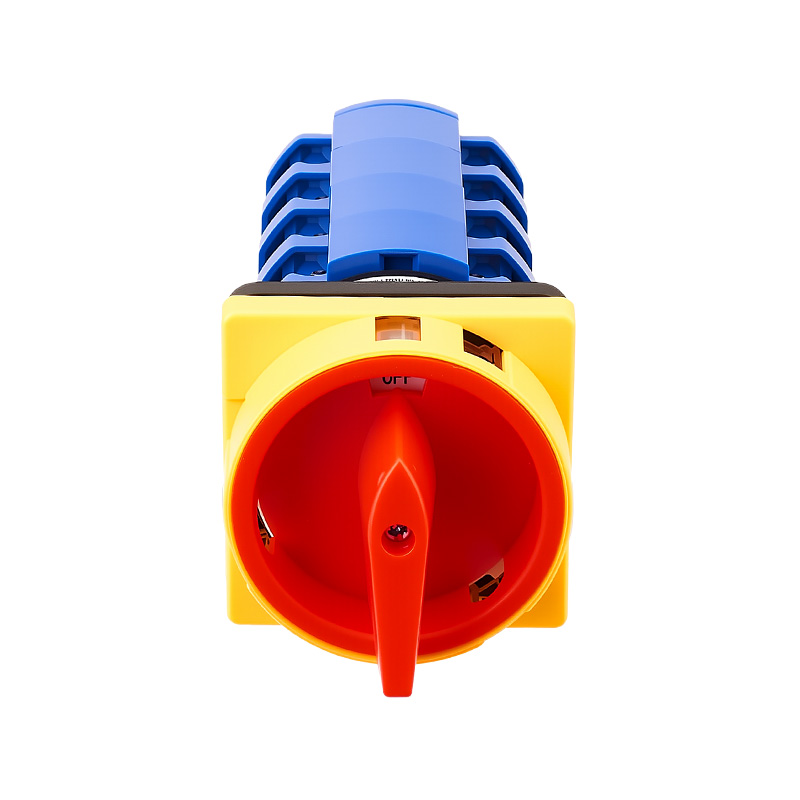

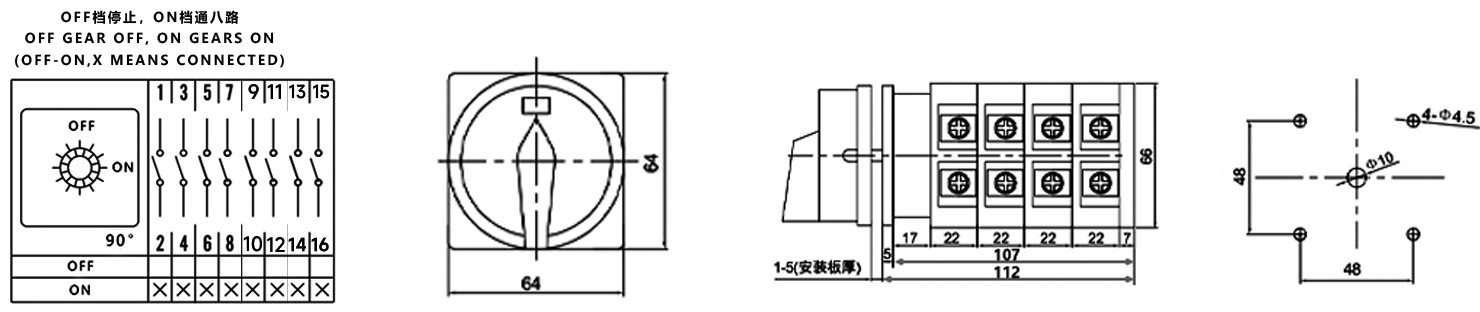

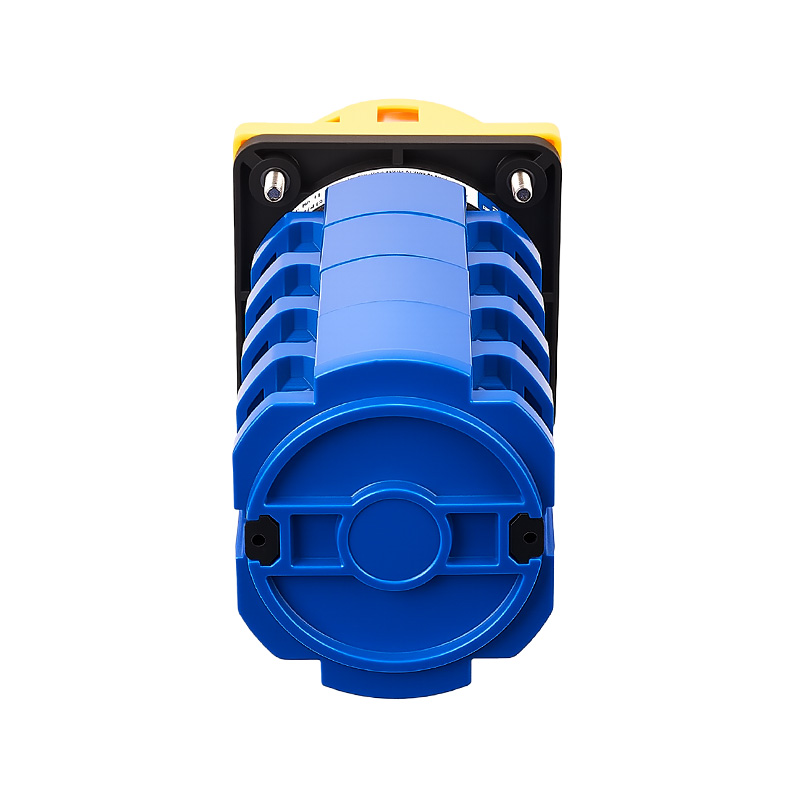

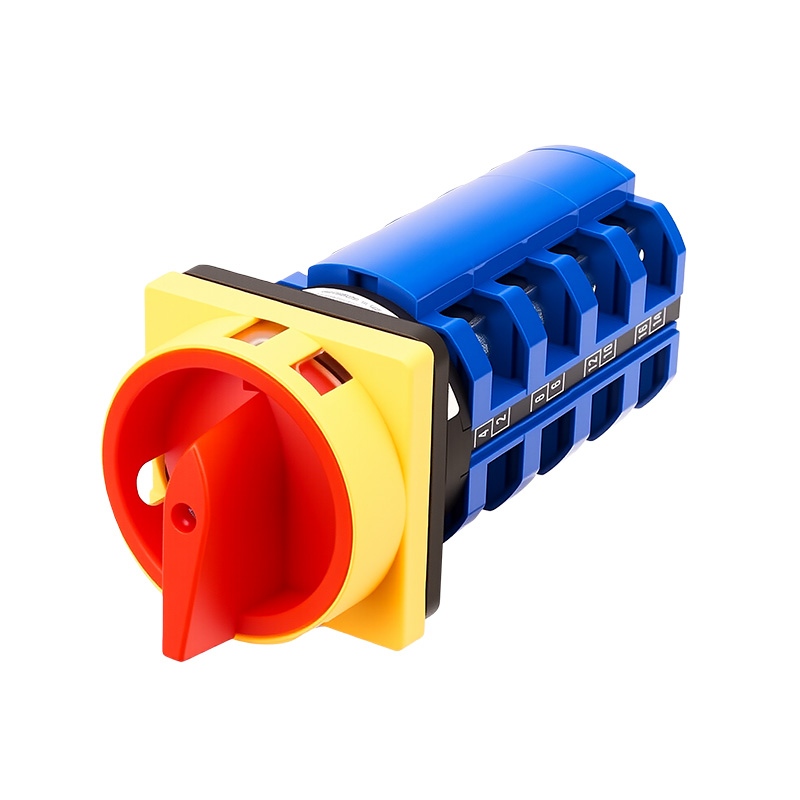

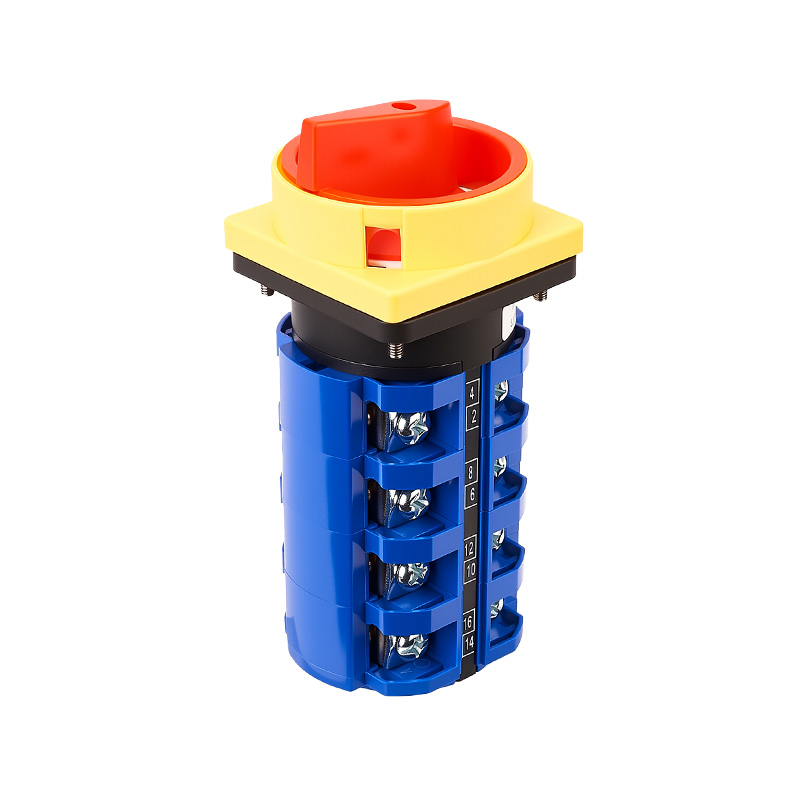

The SZW26-63/4GS is a heavy-duty two-position (OFF-ON) rotary power disconnect switch designed for high-current, high-reliability applications. Its core features a four-section (four-layer) structure, with eight sets of parallel silver alloy contacts (1-2, 3-4, 5-6, 7-8, 9-10, 11-12, 13-14, 15-16) simultaneously connecting in the "ON" position. This redundant design distributes the rated 63A current across multiple contacts, significantly reducing single-point contact resistance, arc erosion, and on-state temperature rise, ensuring excellent electrical performance, mechanical stability, and ultra-long lifespan under high current. The "OFF" position provides complete disconnection of all contacts, ensuring safe and reliable electrical isolation. The product uses thickened copper conductors and a high-strength flame-retardant casing, suitable for AC 440V (50/60Hz) or DC 240V lines, meeting the requirements for industrial environments (-25°C to +40°C). It has a mechanical life of 100,000 cycles and an electrical life of 30,000 cycles.
Application Scenarios
This switch is specifically designed for critical power circuits requiring the highest levels of current capacity, switching reliability, and long-term operational stability.
Main switch for critical equipment: Used as the main power input switch or maintenance safety disconnect point for ultra-high-power industrial equipment (such as large melting furnaces, heavy-duty stamping presses, central refrigeration units, and high-capacity rectifier/inverter devices).
Important power distribution nodes: In power distribution rooms, data centers, and large laboratories, it serves as a manual isolation switch for main incoming lines or critical branch circuits in power distribution systems, providing highly reliable switching functionality.
Direct control of high-current loads: Used for directly controlling three-phase motors, heating systems, large UPS systems, and grid-connected switches for backup generator sets with currents approaching or reaching the 63A rated current. Its multi-contact parallel design provides a safety margin and durability unmatched by ordinary switches.
