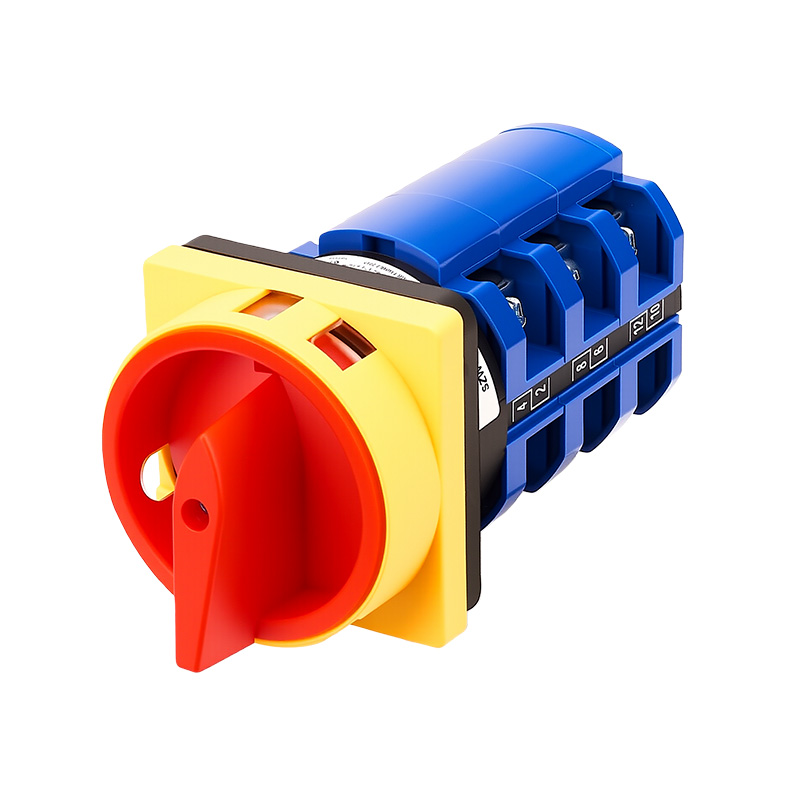

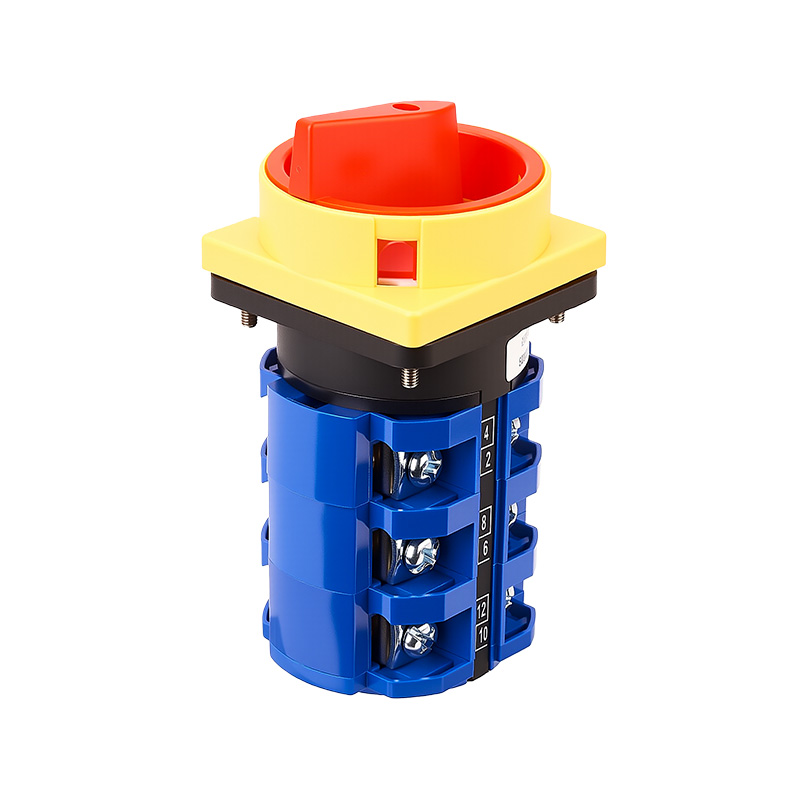

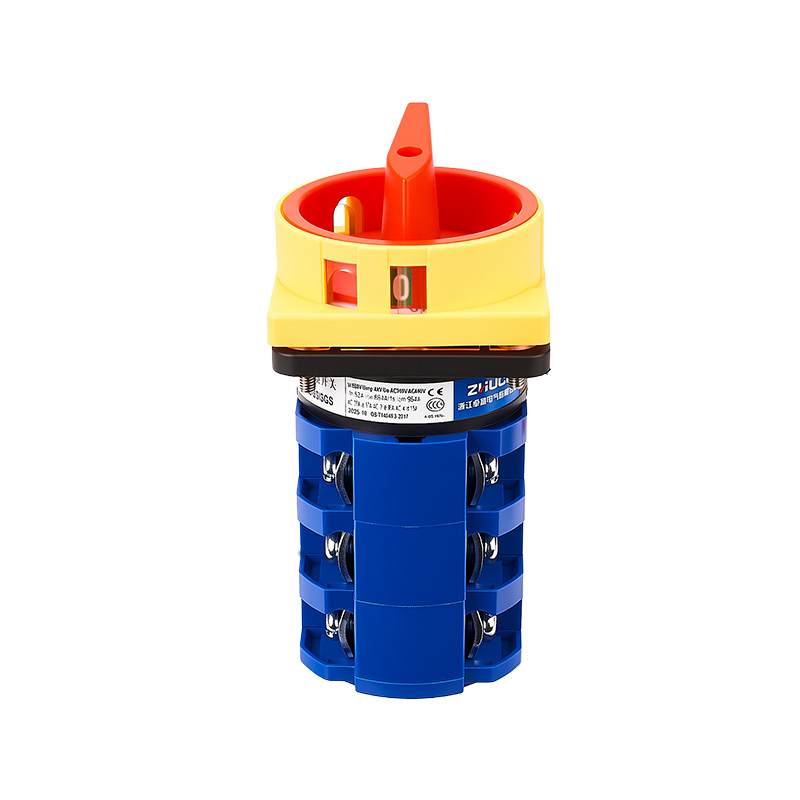

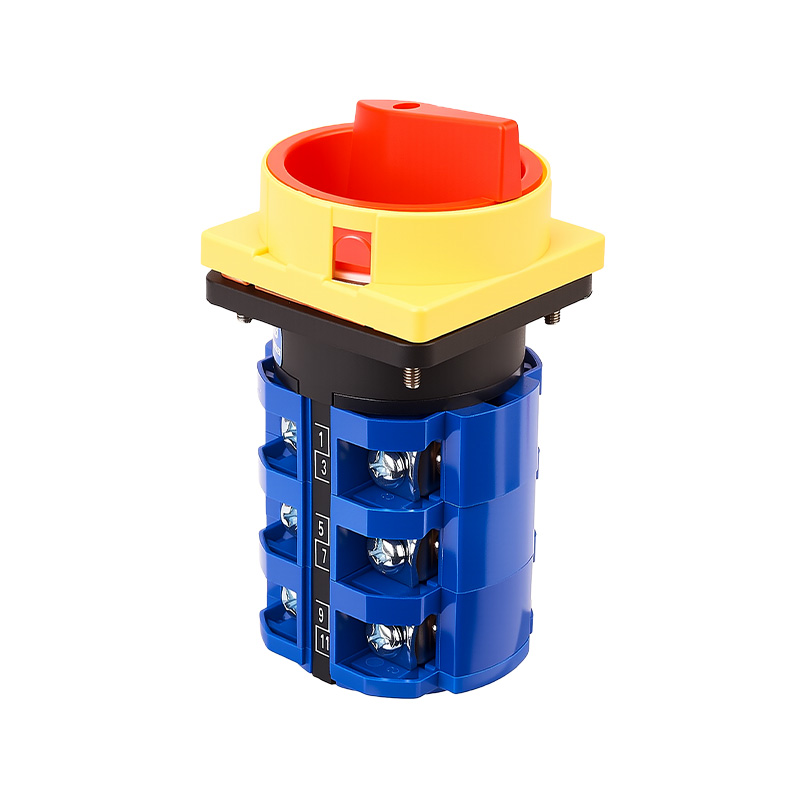

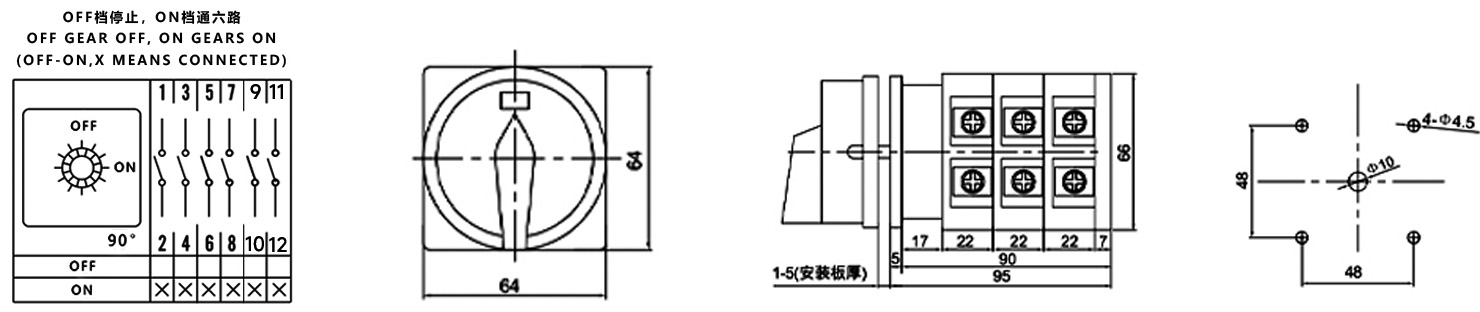

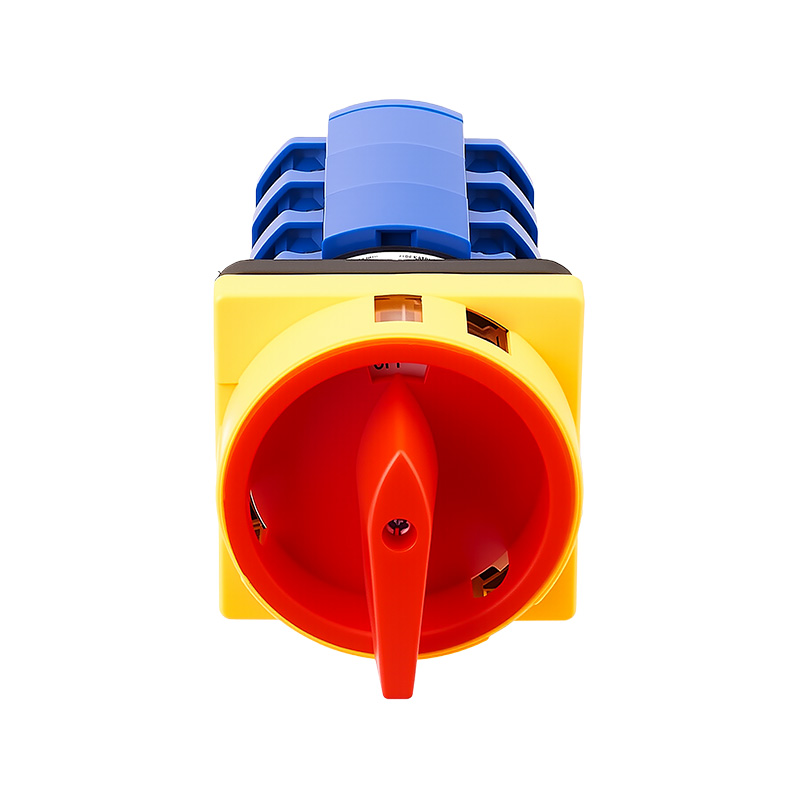

The SZW26-63/3GS is a high-capacity two-position (OFF-ON) rotary power switch designed for reliable switching of high-current 63A circuits. This switch features a three-section (three-layer) structure, operating synchronously through six sets of parallel silver alloy contacts (1-2, 3-4, 5-6, 7-8, 9-10, 11-12). In the "ON" position, all contacts are connected, effectively reducing contact resistance and distributing arcing and heat through multiple parallel contacts, ensuring long-term stability and extremely low temperature rise under high current. In the "OFF" position, all contacts are completely disconnected, providing a clear electrical isolation point. The product uses thickened copper conductors and a high-strength flame-retardant casing, suitable for AC 440V (50/60Hz) or DC 240V lines. It has a mechanical life of 100,000 cycles and an electrical life of 30,000 cycles (under rated load, operating frequency ≤120 times/hour).
Application Scenarios:
This switch is specifically designed for critical high-current main circuits requiring extremely high switching capacity and reliability.
Heavy-duty equipment main power switch: Used as the main power isolation switch or emergency disconnect switch for large industrial equipment (such as high-power electric furnaces, central air conditioning units, heavy-duty CNC machine tools, and large-capacity UPS input/output).
High-current power distribution and protection: Used in power distribution cabinets, generator paralleling cabinets, and capacitor compensation cabinets as a manual isolation and operating switch for main incoming lines or high-capacity branch circuits.
Critical load control: Directly controls the start and stop of high-power loads such as three-phase asynchronous motors, large heating units, and electrolytic plating power supplies with a rated current of 63A or less, providing a reliable physical disconnection point.
