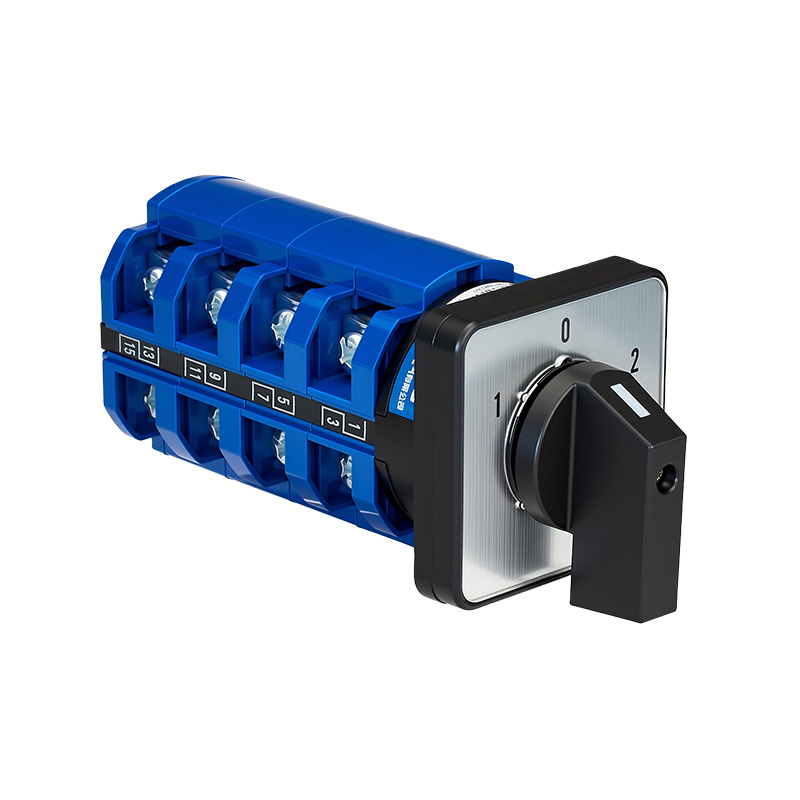

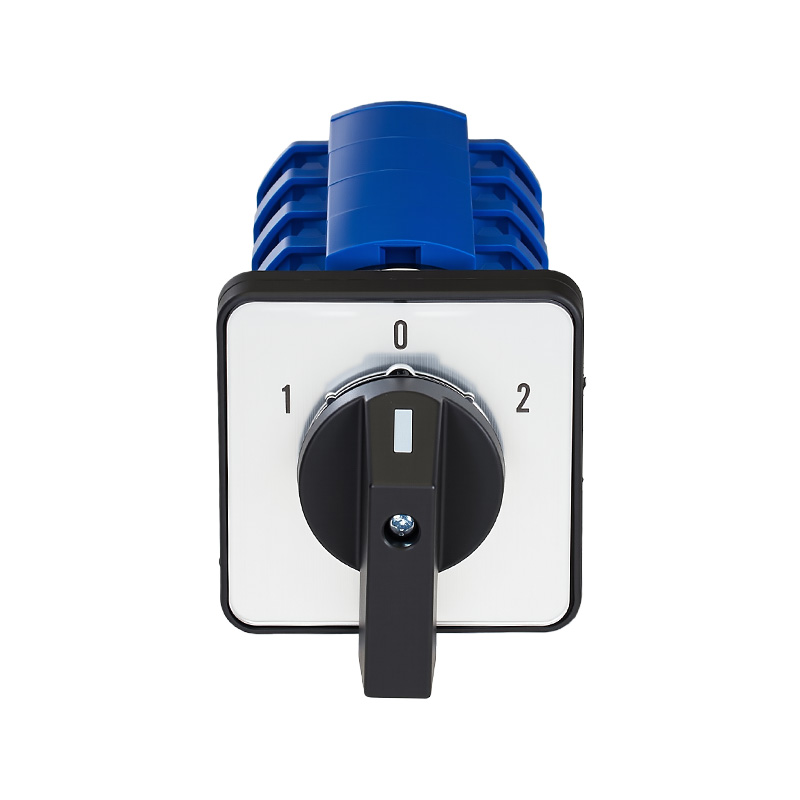

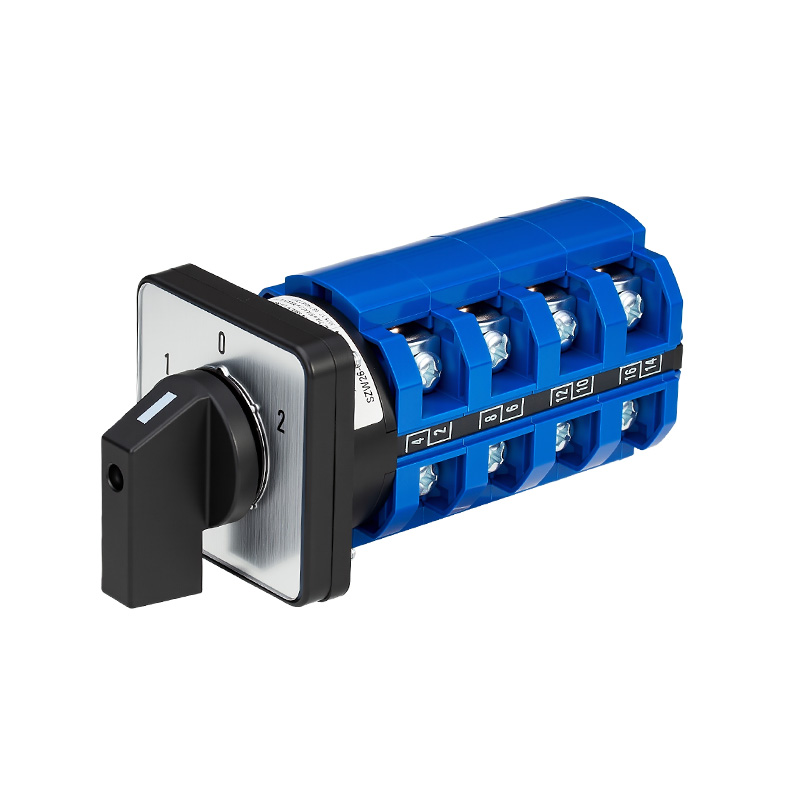

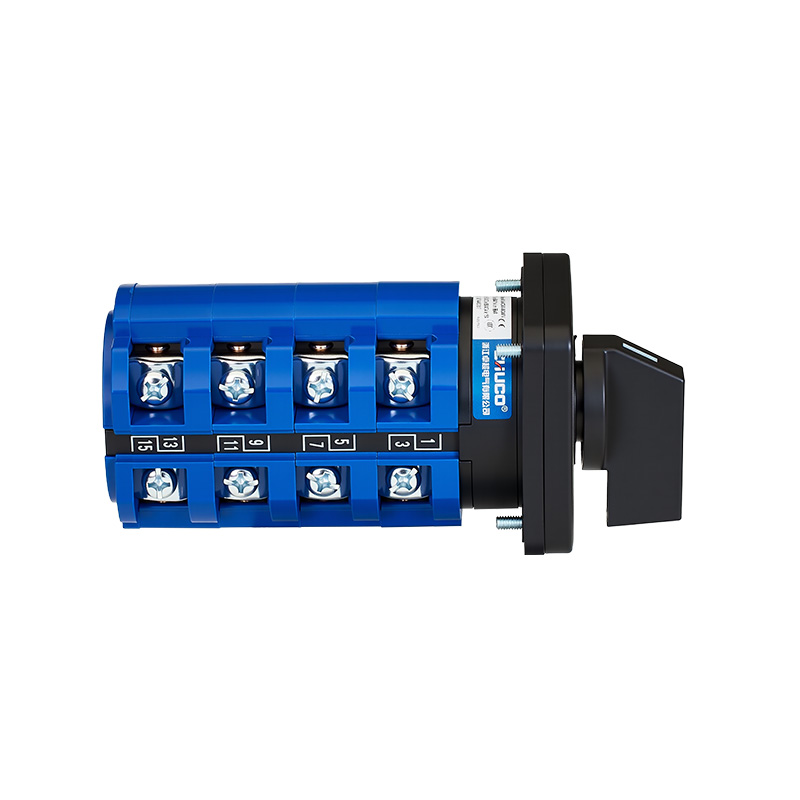

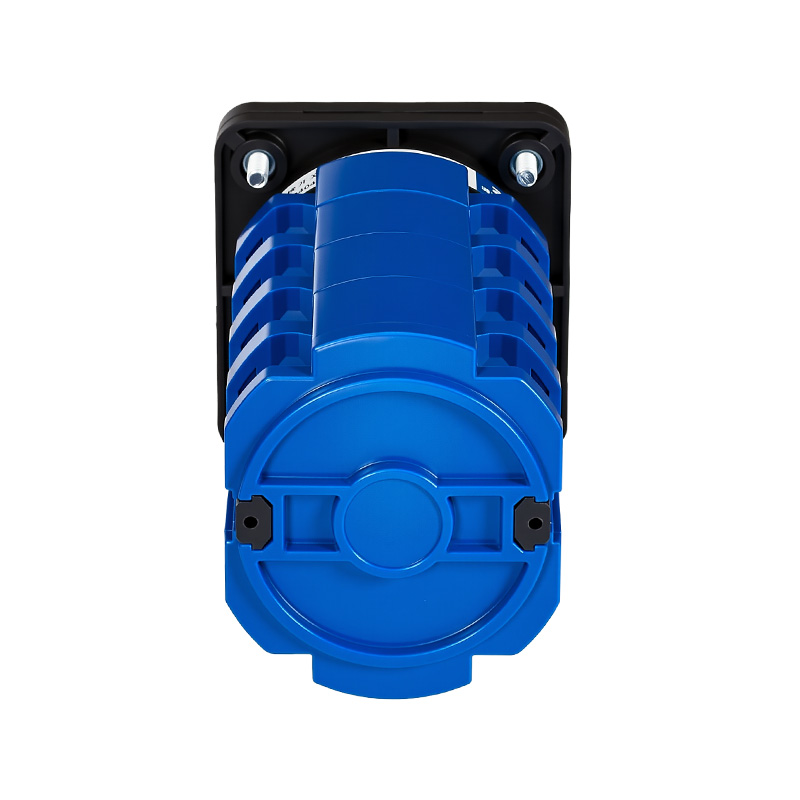

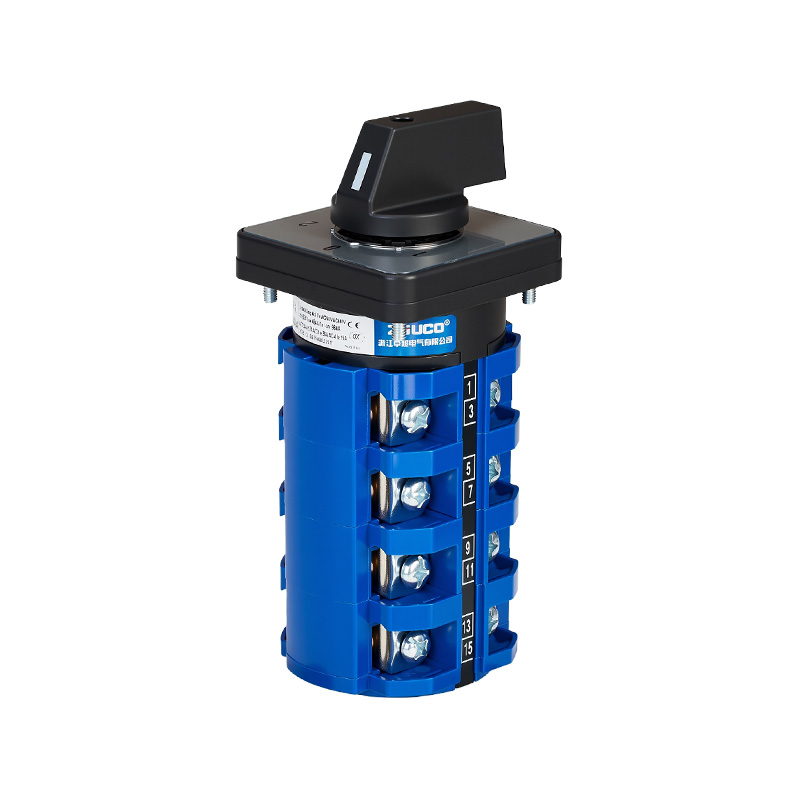

ZHUCO SZW26-63/D404.4 1-0-2 Three-Position Four-Pole Changeover Switch

The SZW26-63/D404.4 is a high-capacity, multi-circuit, three-position (1-0-2) rotary transfer switch. Its core features a four-section (four-layer) structure, allowing for the simultaneous control of four independent double-throw circuits, making it particularly suitable for complex scenarios requiring simultaneous switching of the main power circuit (three-phase) and auxiliary control circuits. The switch has a rated current of 63A and an insulation voltage of 690V, suitable for AC 440V/50-60Hz lines. The contact logic is as follows:
Position I: Connects the first set of four outputs (contacts 1-2, 5-6, 9-10, 13-14).
Position 0: Neutral position, all contacts are open, providing a safe isolation point.
Position II: Connects the second set of four outputs (contacts 3-4, 7-8, 11-12, 15-16).
The product uses silver alloy contacts and thickened copper conductors, resulting in a compact and reliable structure. Mechanical life is ≥300,000 cycles, and electrical life is ≥60,000 cycles (under rated load, operating frequency ≤120 times/hour).
Application Scenarios
This switch is designed for demanding industrial environments requiring simultaneous switching of multiple high-current power sources or loads, providing an integrated control solution.
Core Application: Enables simultaneous dual-circuit switching of three-phase main power + single-phase control power. For example, it can be used for "one-for-one" overall switching between two complete three-phase motor systems (including main power and associated cooling fans and controller power).
Complex System Control: Used in multi-mode switching applications requiring simultaneous changes to the main circuit (e.g., motor direction, speed) and multiple auxiliary circuits (e.g., indicator lights, brakes, lubrication), such as work mode selection in large machine tools and molding equipment.
High-Reliability Power Conversion: Used as a manual bypass switch in automatic transfer switch (ATS) systems, or in important power distribution cabinets requiring simultaneous switching of the main circuit and monitoring circuit. Widely used in power, heavy industry, mining, and large-scale automated production lines.

Prev: ZHUCO SZW26-63/D303.3 1-0-2 Three-Position Three-Pole Changeover Switch

Next: ZHUCO SZW26-63/D606.6 1-0-2 Three-position six-section changeover switch

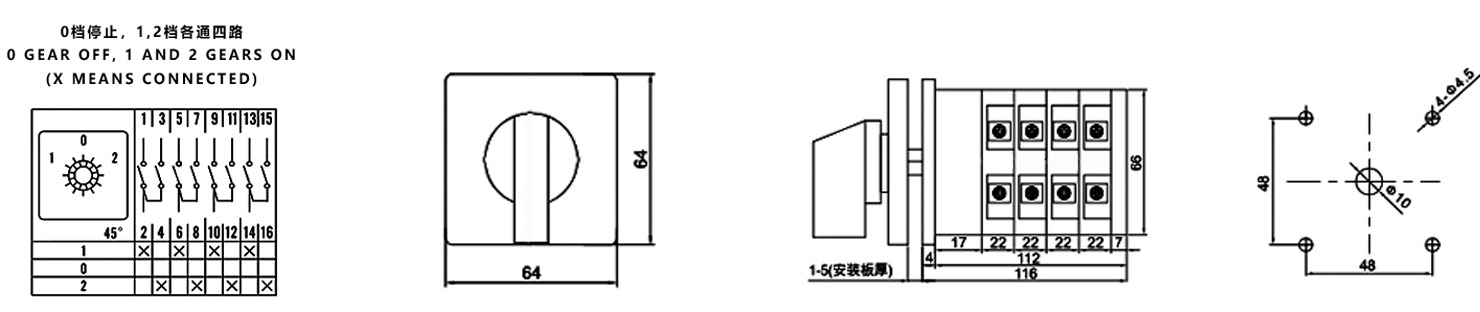

PRODUCT SIZE

Internal wiring diagram

Panel size(mm)

Shape size(mm)

lnstallation size(mm)

TECHNICAL PARAMETERS

Name	Change Over Switch
Brand	ZHUCO
Model	SZW26-63/D404.4
Rated working voltage	AC440V
Rated insulation voltage	660/690V
Rated impulse withstand voltage	6kV
Conventional heateing current	63A
Rated working current	le: AC-23A: 57A; AC-3: 36A; AC-4: 15A
Rated short-time withstand current	684A/1s
Rated short-circuit making capacity	694A
Use category	AC-23A、AC-3、AC-4
Polar number	4
Meet the standards	GB/T14048.3-2017
3C Certificate Number	2024010302651148
CE testing standard	EN 60947-5-1:2017
CE Certificate number	TLZJ21072132378
